Coarse Safety-Grip

H3402

  • 36 grit aluminium oxide surface
  • Suitable for construction and more heavy-duty sites
  • Available in widths from 19mm to 1168mm
  • Coarser surface to prevent clogging by dust and mud

Coarse Anti Slip Tape

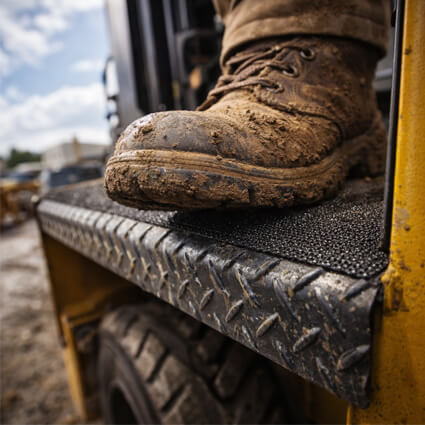

Anti Slip Tape Suitable For Muddy Areas

Durable Anti Slip Tape

Anti Slip Tape With High Grip

COARSE SAFETY-GRIP

Coarse Safety-Grip has, like the name suggests, a coarser grit on its surface than that of standard.

The grit is still the same substance, aluminium oxide; but the difference is the grit granules are larger with deeper valleys and higher peaks. A deep anti-slip coating helps to prevent clogging with dirt, dust, ice etc. A deeper grit provides great durability.

Coarse Safety-Grip is BS 7976:2 pendulum tested with results available on the tech specs tab.

Application

Due to the abrasive levels that coarse Safety-Grip possesses, it is more suitable for areas exposed to constant coverage of dirt or water. Industrial or construction sites do suffer from exposure to dirt, amongst other things. The deep recesses on the surface of coarse grip tape prevent it from becoming clogged within reason, allowing it to provide adequate slip protection in demanding environments. The optimal application temperature for coarse Safety-Grip is 10°C  or above.

Application Temperature Graph -40 to 70 Grey    Optimal Service Temperature

Sizes

Any width from 19mm up to 1168mm is possible. Widths of between 10mm and 18mm are available on special request. Sizes available off the shelf are 25mm, 50mm, 75mm, 100mm and 150mm in width, as well as full-width logs. All stock sizes have a length of 18.3m.

Lab Testing

At Heskins, we’re committed to providing top-tier safety solutions for all environments. Our Coarse Safety-Grip anti-slip tape is no exception. Rigorously tested in the lab, our Coarse Safety-Grip tape has earned an outstanding R13 rating, showcasing its remarkable anti-slip properties. Designed with a coarser texture for enhanced traction, this tape is engineered to provide maximum grip even in the most challenging conditions.

Custom Coarse Grip Tape

We can offer a host of custom anti-slip solutions when it comes to H3402 coarse grip tape. Dependent on order quantity, Heskins produce coarse anti-slip tape in any size, shape or colour (matching RAL and Pantone references).

If you are interested in H3402 coarse Safety-Grip tape, you can contact us by phone, Live Chat or complete the Contact Us form above and we will get back to you as soon as possible.

VIDEOS

The Three Grades of Safety-Grip Tape

CLEAN SURFACE WITH H3508 IPA SURFACE CLEANER

Measure Tape To Length

Cut Tape To Length

PEEL OF ADHESIVE BACKING

APPLY TAPE USING EVEN PRESSURE

DESIGN

Please click on the images to view the Dimensions.

L

TL528 – 200mm x 200mm

COLOUR

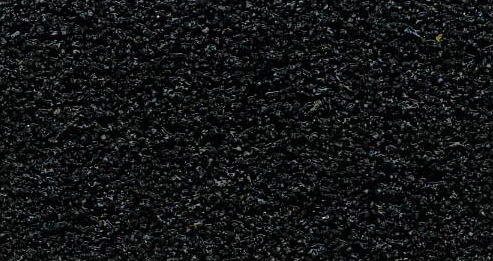

H3402N

Pantone / RAL
Black U / 9004

Average LRV
0

Black

H3402Y

Pantone / RAL
113 U / 1023

​Average LRV
​38.25

Yellow

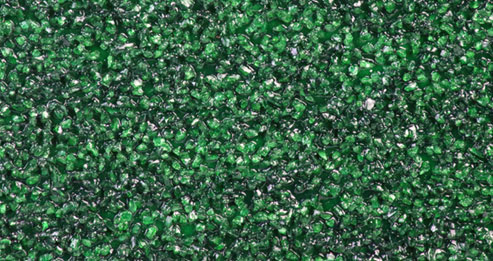

H3402V

Pantone / RAL
342 U / 6010

​Average LRV
​1.50

Green

H3402W

Pantone / RAL
White / 9003

​Average LRV
​57.40

White

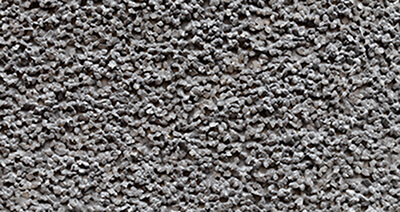

H3402S Grey Coarse Safety-Grip Swatch Web

H3402S

Pantone / RAL
4276 C/ 7045

​Average LRV
17.1

Grey
H3402T Transparent Coarse Safety-Grip Swatch

H3402T

Pantone / RAL
N/A

​Average LRV
49.7

Transparent

H3402D

Pantone / RAL
Black: Black U / 9004
Yellow: 113 U / 1023

Average LRV
Black: 1.38
Yellow: 35.73

Black/Yellow

DOWNLOADS

TECH SPECS

PRODUCT CODE COLOUR AV. LRV RANGE
H3402N Black 0 0
H3402V Green 1.50 5
H3402Y Yellow 38.25 2
H3402S Grey 17.1 2.55
H3402T Transparent 49.7 7.6
H3402D Black/ Yellow 1.38/ 35.73 1.47/ 3.31

COEFFICIENT OF FRICTION

DRY SURFACE TEST RESULTS WET SURFACE TEST RESULTS
99 TRL 80 TRL
