Microprismatic Tape Supplier

H6612

  • Focused retroreflective values
  • Micro-engineered 3 point prisms on the surface
  • Retroreflective performance of 5 years
  • Available in various colours
  • Widths from 19mm to 1210mm

Reflective Tape

Durable Reflective Tape

Waterproof Tape

Easy To Clean

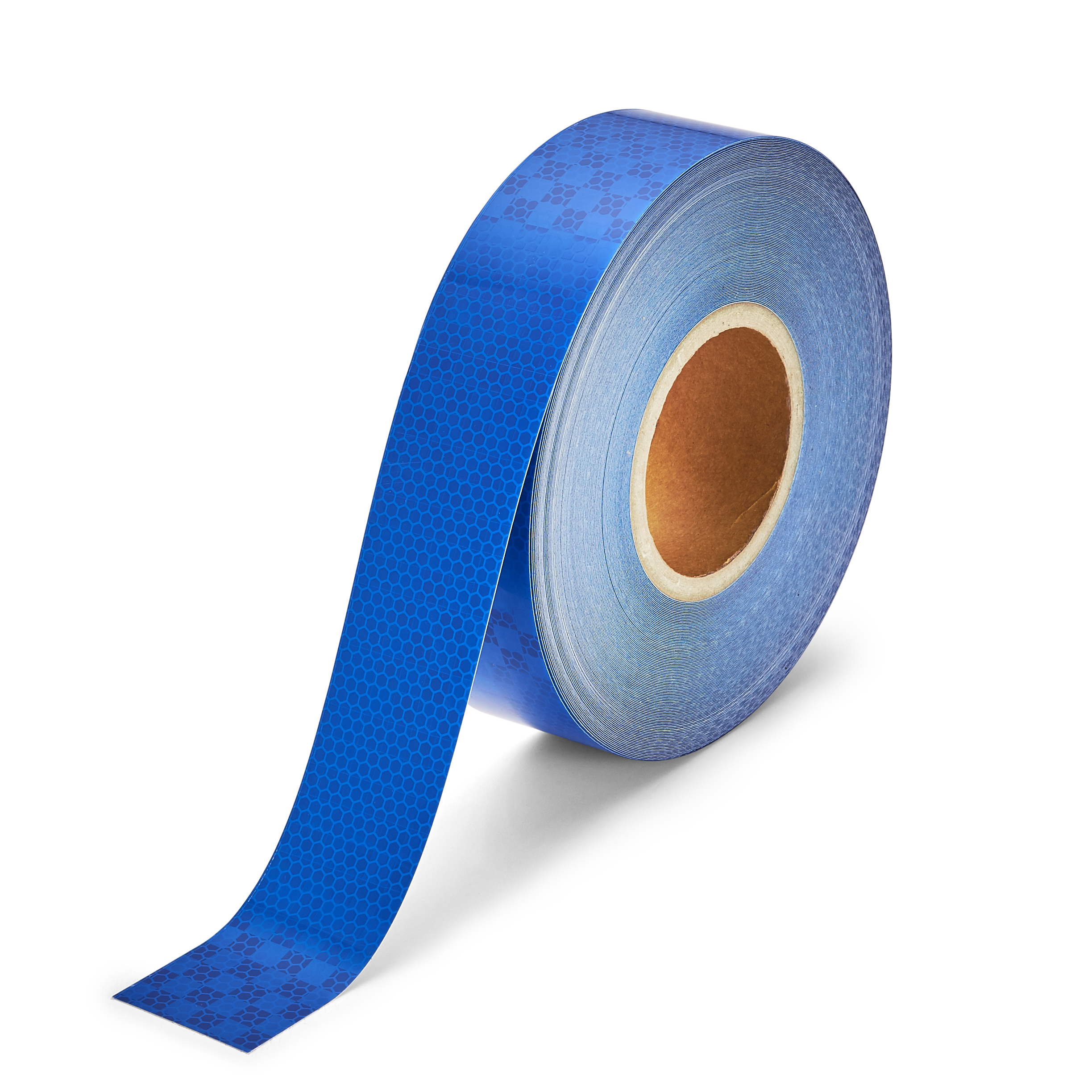

MICROPRISMATIC TAPE

As a reflective tape with extremely high and focused retroreflective values, microprismatic tape is an exceptional choice for application to objects, static or moving that require high visibility at all times.

Applications

The optimal application temperature for microprismatic tape is 10°C or above.

Application Temperature Graph -23 to 65 Grey    Optimal Service Temperature

Benefits

Microprismatics high-performance levels can be attributed to the micro-engineered 3 point prisms that cover the entirety of its surface. These prisms reflect the light in a way that returns 80% of the light back at the source. Due to the cone of light being more concentrated, it is a much more effective reflective tape that increases safety and ensures visibility of whatever it is applied to.

It is commonly referred to as EGP reflective tape, meaning engineering-grade prismatic. This helps to define micro prismatic from standard reflective tape, as it performs for much longer with a retroreflective performance of 5 years.

Applications

Application is possible on any smooth, clean, dry flat surface. Perfect for marking static objects such as posts, barricades, poles, machinery, floors, clothing and moving objects such as buses, trucks, motorcycles, boats and more.

Sizes

Heskins can produce microprismatic tape in widths from 19mm to 1210mm and lengths up to 45 metres.

For more information, or to place an order you can contact the sales team by phone, Live Chat or the contact us form on the website.

VIDEOS

Selling Points Here

Cutting etc.

Cutting etc.

Cutting etc.

DESIGN

Please click on the images to view the Dimensions.

L

TL528 – 200mm x 200mm

COLOUR

H6612R

Pantone / RAL
1795 U / 3020

Average LRV
1.25

Red

H6612O

Pantone / RAL
172 U / 3016

Average LRV
14.75

Orange

H6612Y

Pantone / RAL
109 U / 1026

Average LRV
70.75

Yellow

H6612F

Pantone / RAL
3965 U / 7027

Average LRV
100

Fluorescent Yellow

H6612V

Pantone / RAL
Green U / 6032

Average LRV
7.25

Green

H6612B

Pantone / RAL
3005 U / 5005

Average LRV
2

Blue

H6612W

Pantone / RAL
7541 U / 7035

Average LRV
46.50

White

TECH SPECS

LIGHT REFLECTANCE VALUES

PRODUCE CODE COLOUR AV. LRV RANGE
H6612R Red 1.25 1
H6612O Orange 14.75 2
H6612Y Yellow 70.75 7
H6612F Fluorescent Yellow 100 0
H6612V Green 7.25 2
H6612B Blue 2 2
H6612W White 46.5 13

СТАНДАРТЫ

COUNTRY COLOUR REQUIREMENT
International (US/Canada) White, Yellow, Blue, Green, Red ASTM D4956 Type I
Europe EN White, Yellow, Blue, Green, Red 12899/1 RA1
Argentina White, Yellow, Blue, Green, Red IRAM 10033
Japan White, Yellow, Blue, Green, Red JIS Z9117
Australia White, Yellow, Blue, Green, Red AS/NZS 1906.1 Class 100
New Zealand White, Yellow, Blue, Green, Red AS/NZS 1906.1 Class 100
Korea White, Yellow, Blue, Green, Red KS T:3507, Type I
Brazil White, Yellow, Blue, Green, Red ABNT 14644 Tipo I
Russia White, Yellow, Blue, Green, Red GOST 55290 Class 1
China White, Yellow, Blue, Green, Red GB/T 18833 Type I
South Africa White, Yellow, Blue, Green, Red SANS 1519-1
International (US/Canada) Fluorescent Yellow ASTM D4956 Type III/IV
France Fluorescent Yellow NF XP9B-502 T2
Argentina Fluorescent Yellow IRAM 3952 Class II
Japan Fluorescent Yellow JIS Z9117
Australia Fluorescent Yellow AS/NZS 1906.1 Class 300
New Zealand Fluorescent Yellow AS/NZS 1906.1 Class 300
Korea Fluorescent Yellow KS T:3507, Type IV
Brazil Fluorescent Yellow ABNT NBR 14644 Tipo III
Mexico Fluorescent Yellow N-CMT-5-03-001 Tipo A
China Fluorescent Yellow GB/T 18833 Type IV
Russia Fluorescent Yellow GOST 52290National Class 2
Europe Fluorescent Yellow EN 12899/1 RA2/R2
South Africa Fluorescent Yellow SANS 1519-1 Class 2
International (US/Canada) Orange ASTM D4956 Type I
Europe Orange EN 12899/1 RA1
Argentina Orange IRAM 10033
Japan Orange JIS Z9117
Australia Orange AS/NZS 1906.1 Class 100
New Zealand Orange AS/NZS 1906.1 Class 100
Korea Orange KS T:3507, Type I
Brazil Orange ABNT 14644 Tipo I
Russia Orange GOST 55290 Class 1
China Orange GB/T 18833 Type I
South Africa Orange SANS 1519-1
