PermaLean Manufacturer

H6905

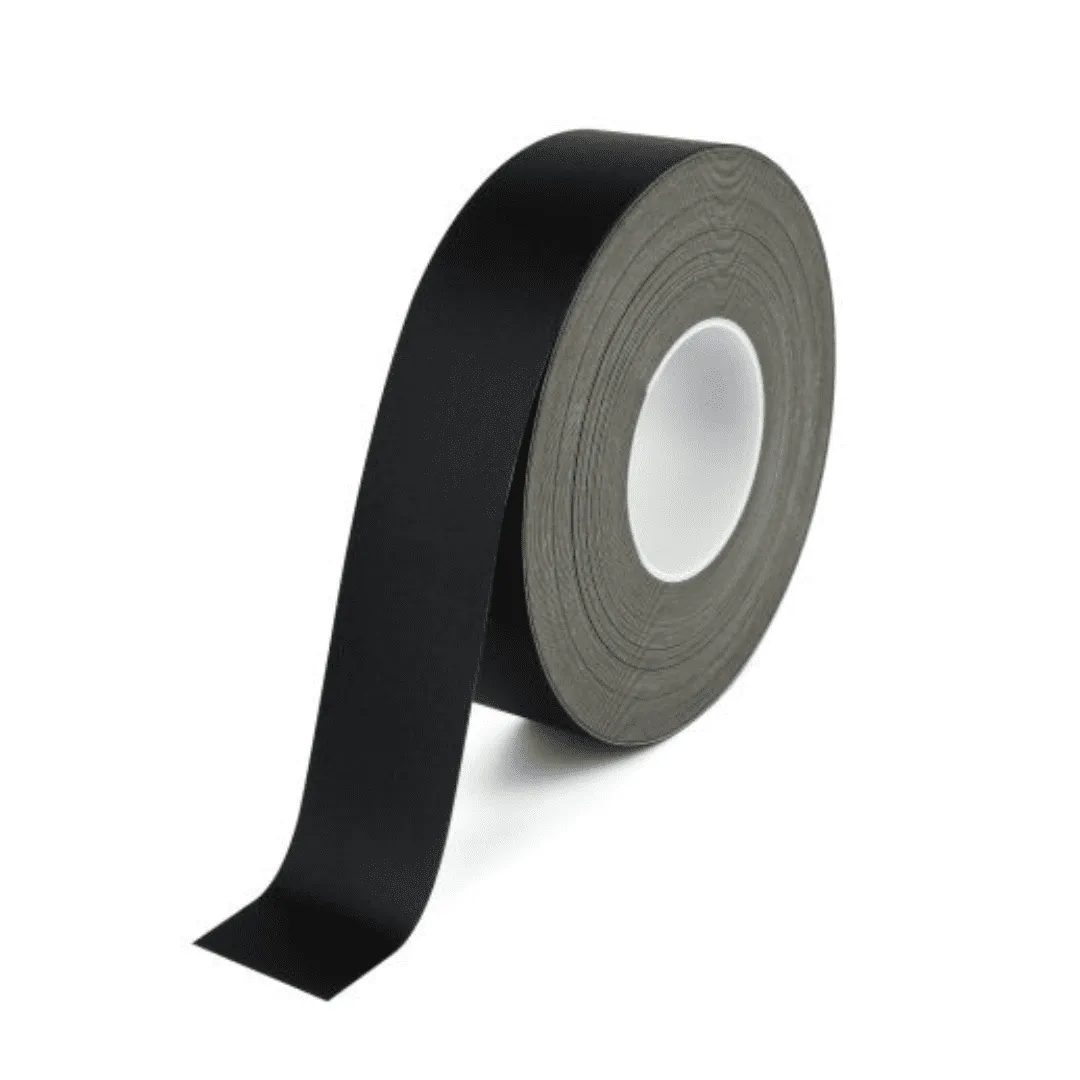

  • Durable, lean marking tape
  • Tough, upper laminate
  • Printed, colour base layer
  • 570mu thick
  • Rolls & die-cut widths up to 1260mm
  • Free samples (takes you to permastripe.co.uk)
  • 1 year guarantee
5S Optimisation

5s Optimised Floor Marking

1 Year Guarantee

High Quality Line Marking

Durable Floor Marking

PERMALEAN

PermaLean is our most durable and lean marking tape yet! At a total thickness of 570mu, PermaLean is the leanest self-adhesive, industrial-grade floor tape in the world. With PermaStripe being 1300mu and PermaRoute 960mu, PermaLean allows us to offer a cost-effective range of durable, lean floor tape that will provide better options for a wider audience to choose to suit their requirements and budget. The product is designed to be extremely tough and allowing great margins for resellers.

Why PermaLean?

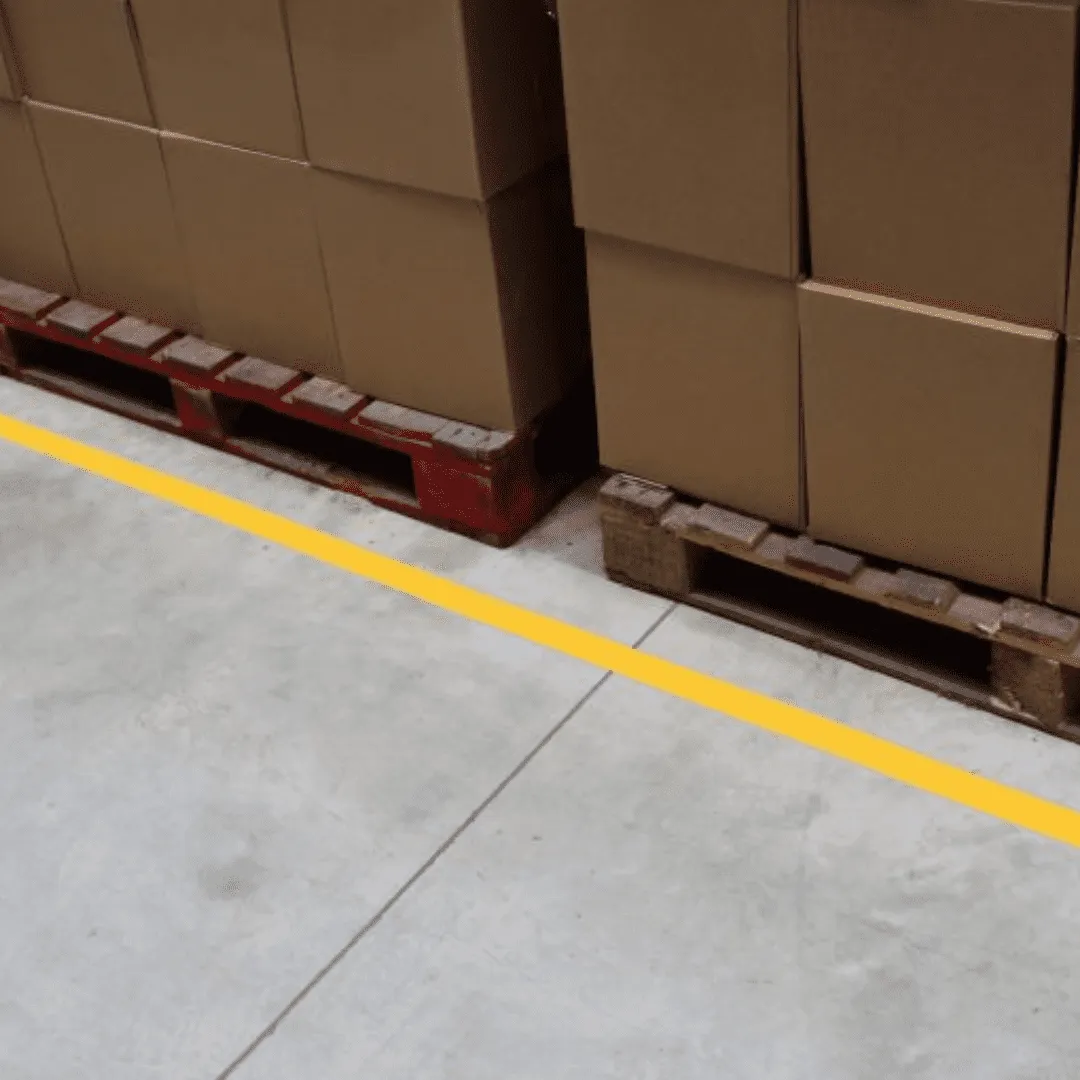

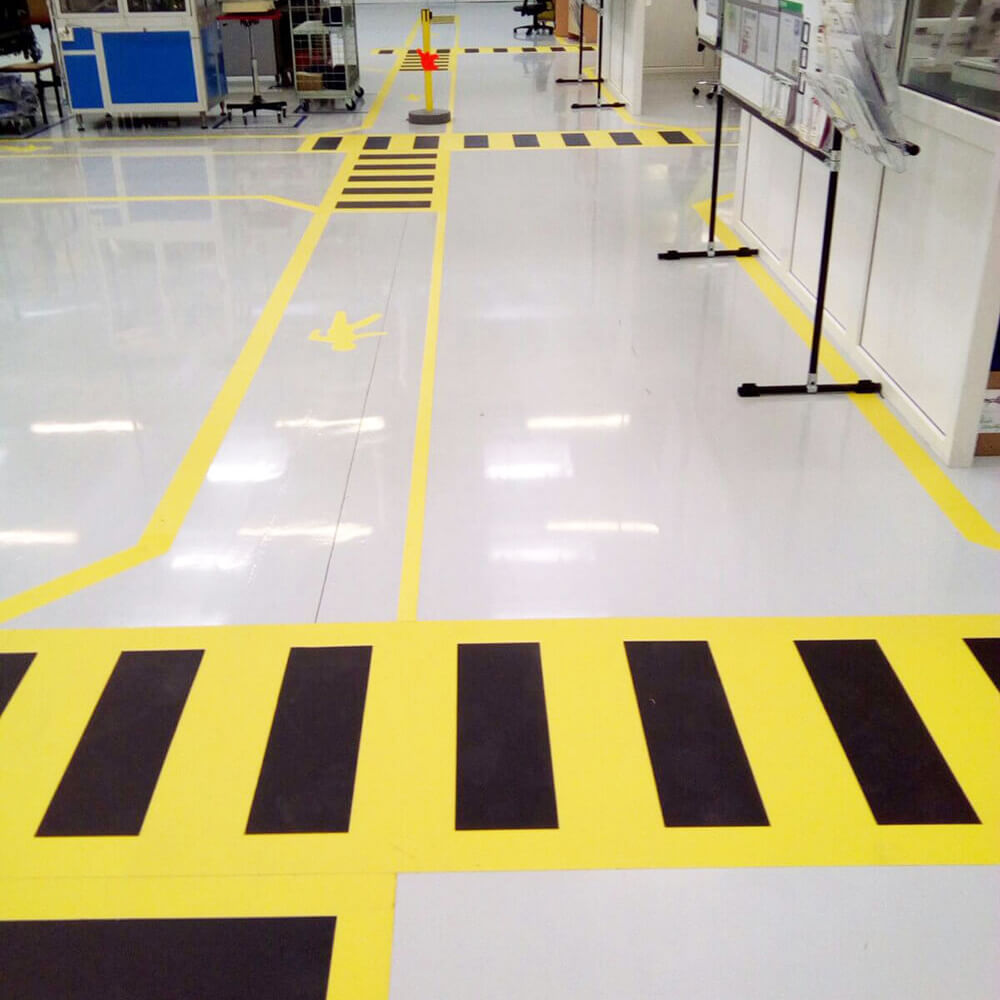

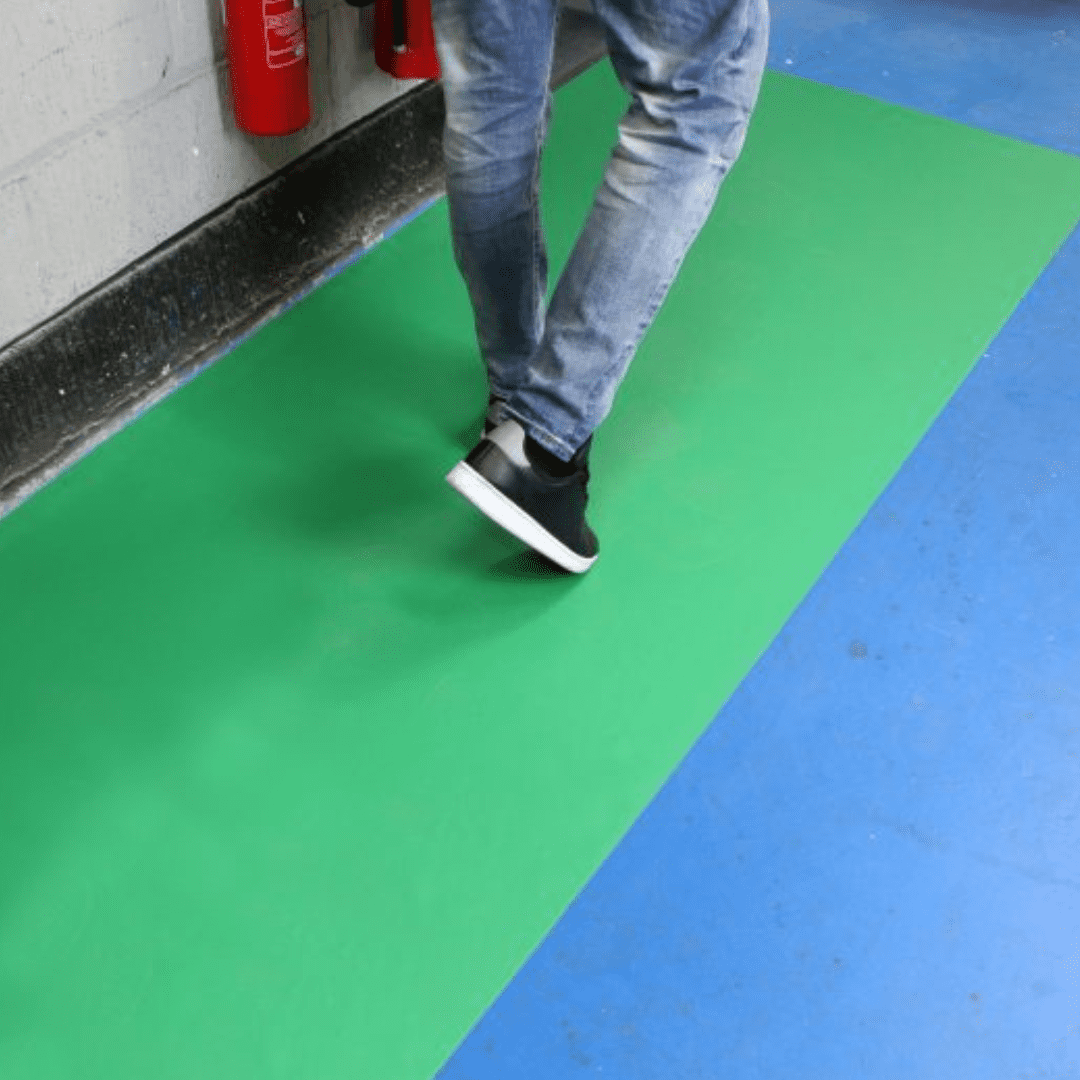

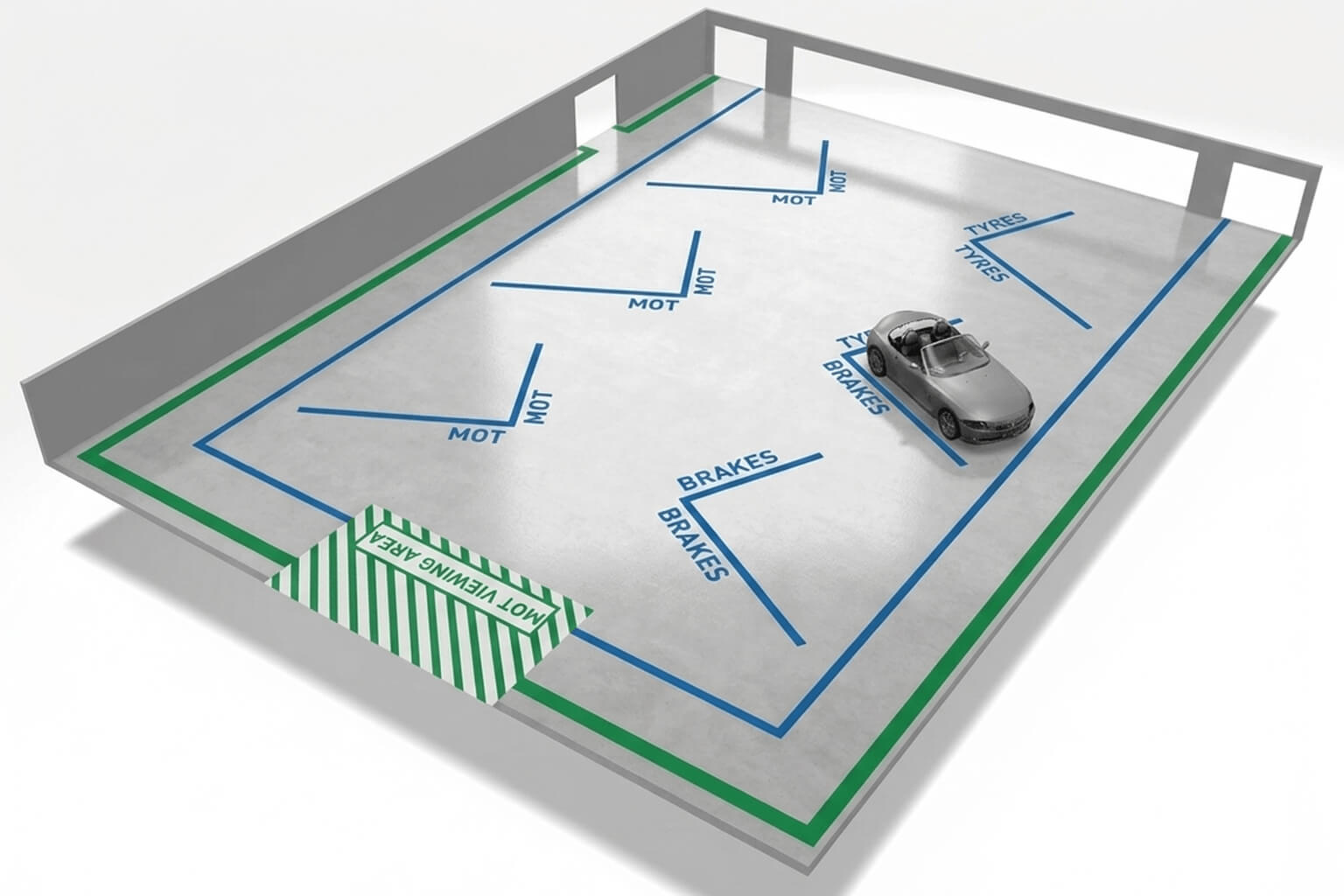

You can create a cost-effective, lean floor marking system within your workplace to provide guidance in the form of lines, shapes, letters and numbers, in various colours to suit your workplace needs and 5S floor marking requirements.

For plain colours it is produced from a solid homogenous piece of colour plastic film that is 500mu thick, for hazard chevron colours (black/yellow and red/white) to ensure that you get the most durable hazard possible we print onto a 250mu base film then laminate a tough clear 250mu upper film to ensure that the pattern can never be scratched off!

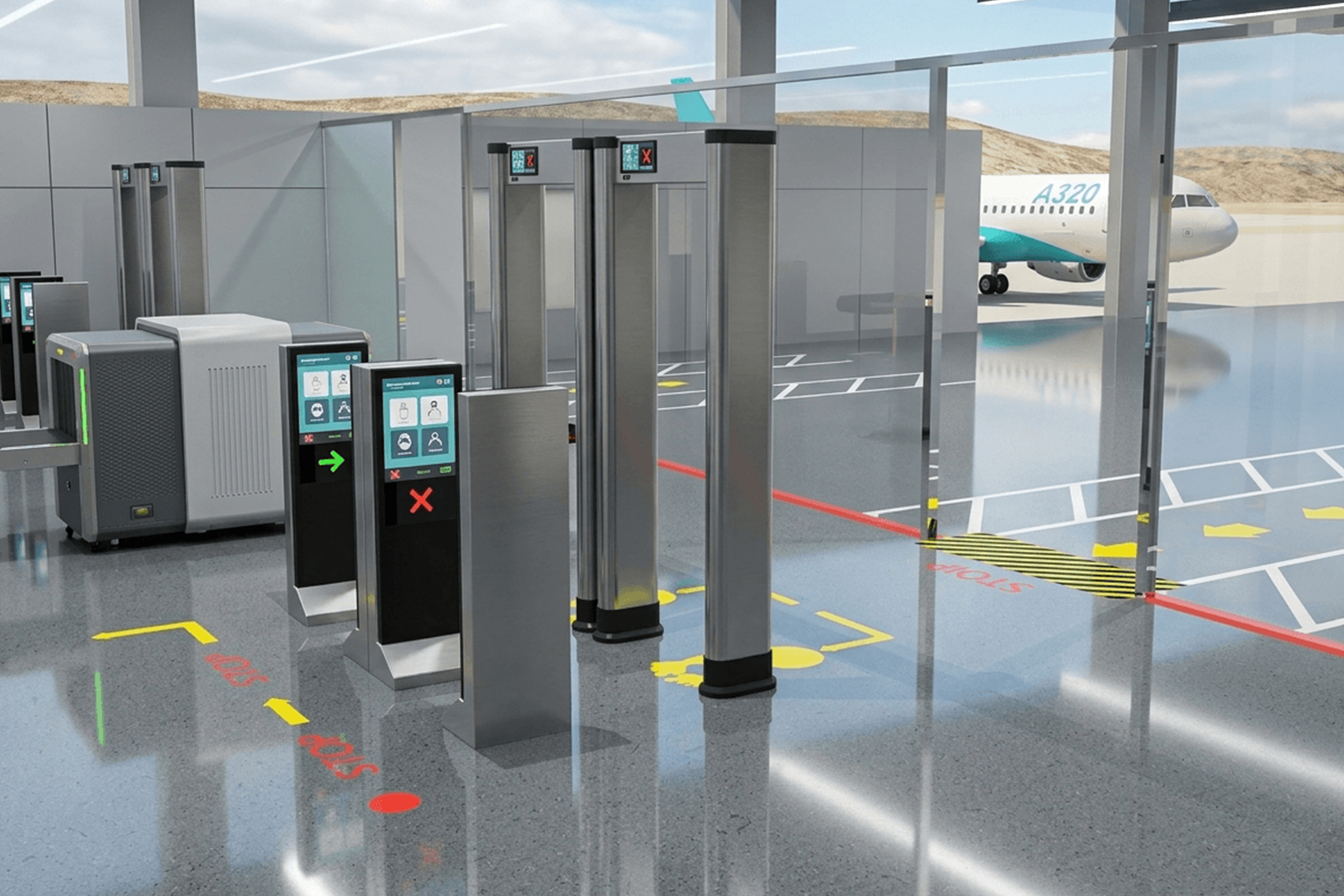

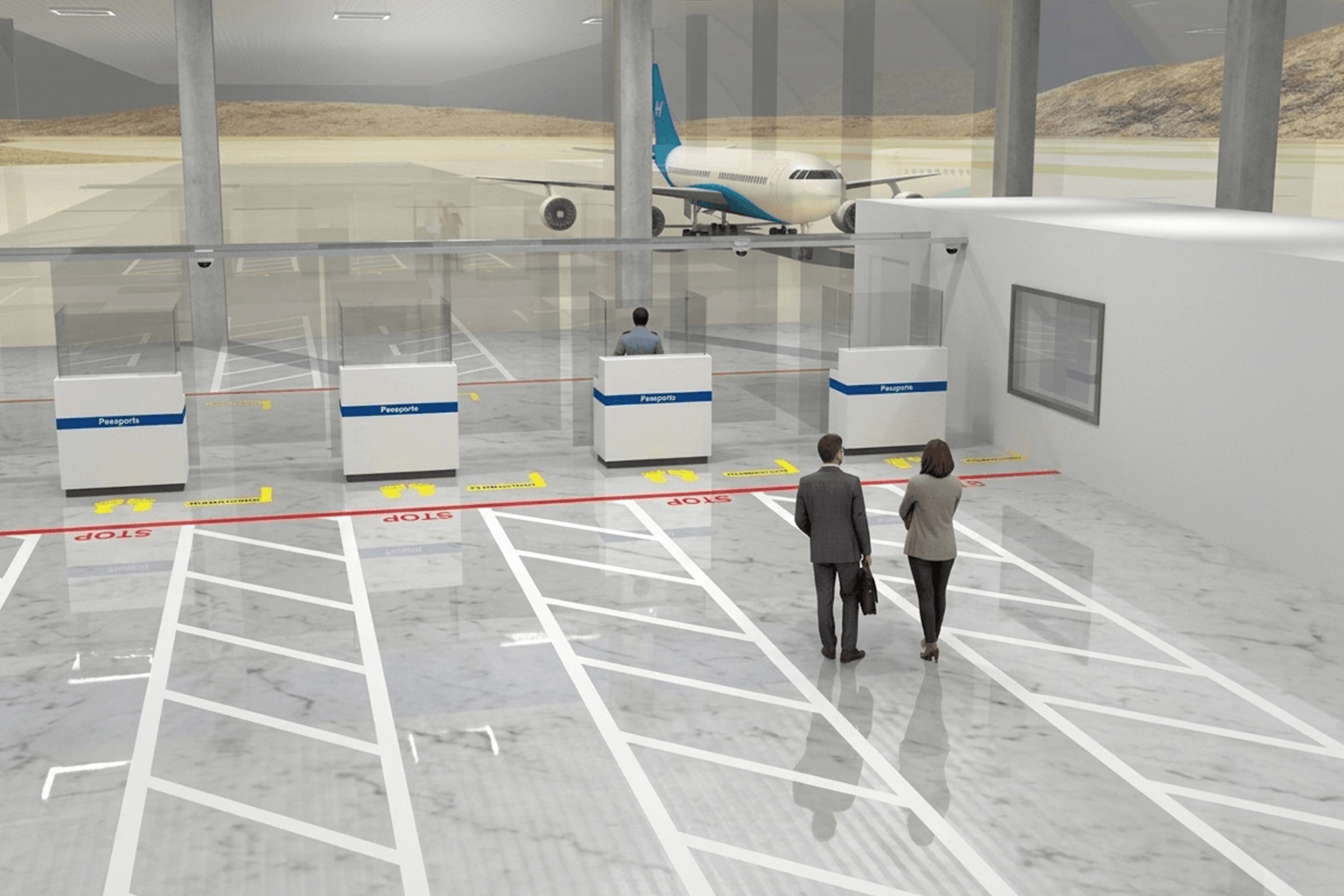

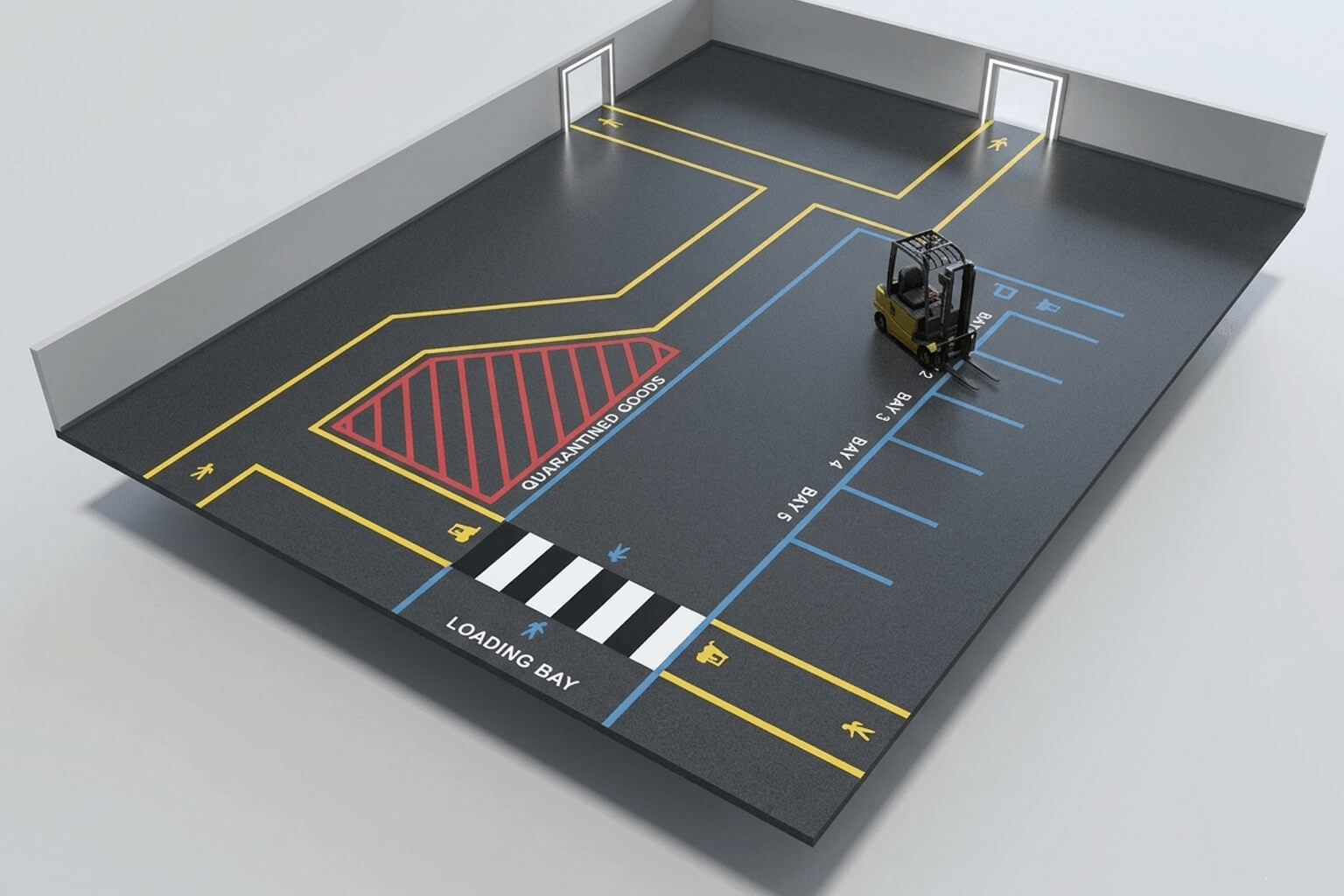

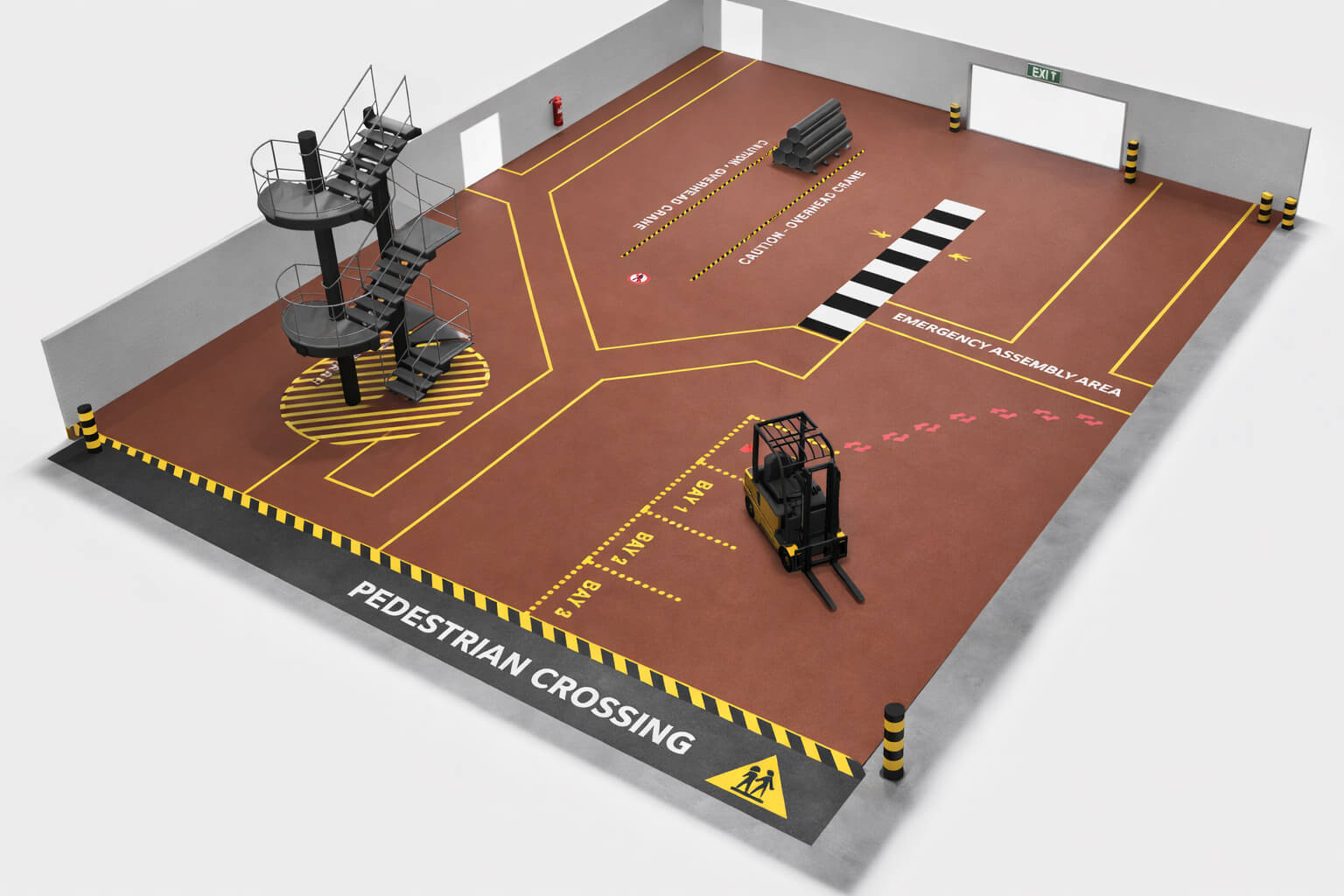

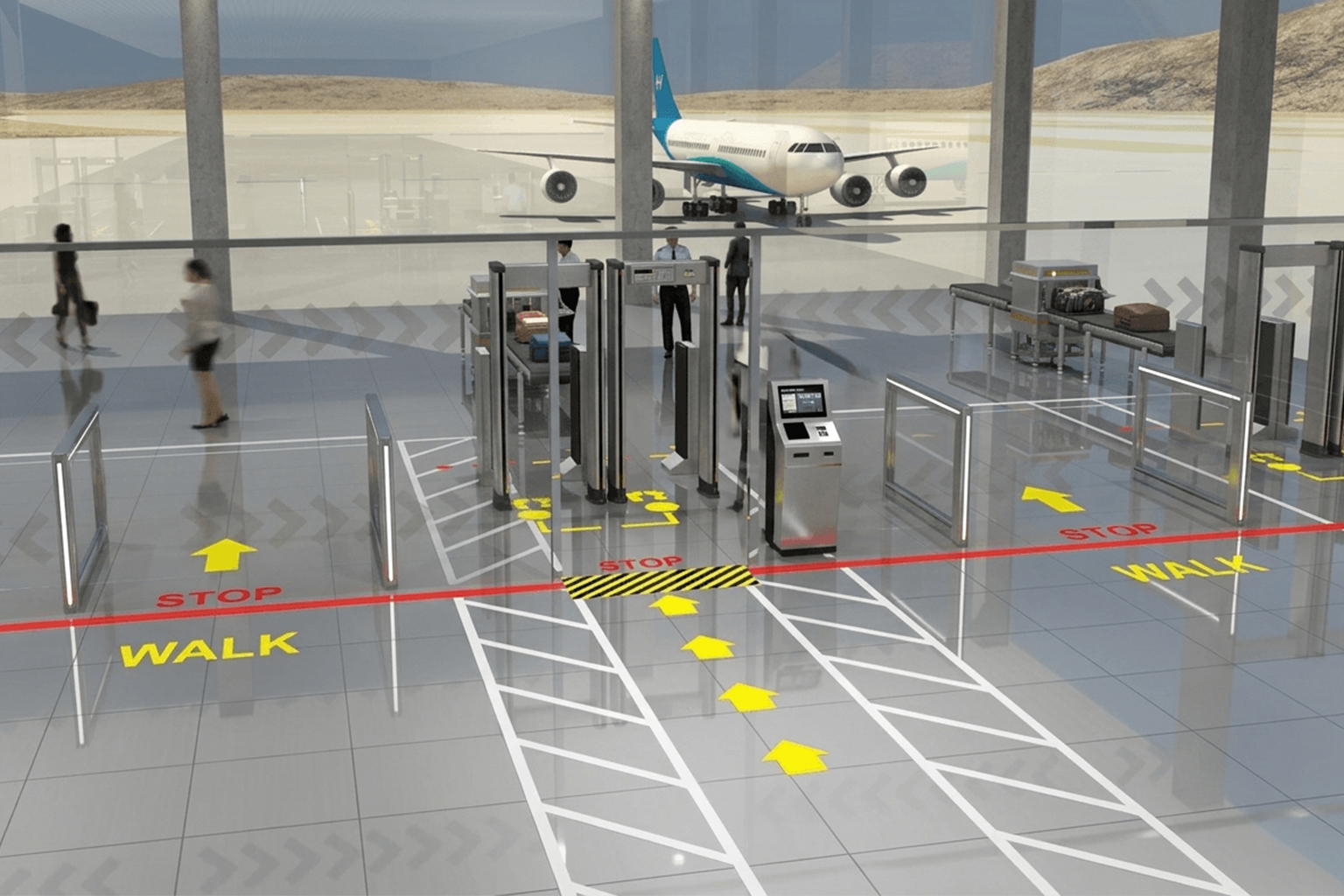

Applications

The optimal application temperature for PermaLean is 10°C or above.

Application Temperature Graph -30 to 70 Grey    Optimal Service Temperature

Lab Testing

At Heskins, safety is at the core of our mission. Our PermaLean marking tape undergoes thorough testing in controlled laboratory environments to ensure its slip-resistant features. We’re delighted to announce that our PermaLean tape has achieved an R10 rating, affirming its excellence as a floor marking system solution, suitable for a wide range of industries.

PermaLean Sizes & Shapes

As PermaLean lean marking tape is produced in 1260mm master rolls, these can then be cut down into rolls anywhere from 15mm to the maximum 1260mm. Die-cuts can also be produced in any size up to the master roll width. View our range of available die-cut designs here.

Our stock range of H6905 PermaLean die-cut designs can be produce very quickly, but any custom shapes will be considered (minimum order quantities and additional tooling costs are required).

PermaLean 1-Year Warranty

The Heskins warranty for PermaLean lean floor tape is conditionally warranted for 1 year from product purchase. Warranty claims are only limited to the replacement of PermaLean. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.

You can request samples by completing the PermaLean sample request form. (takes you to permastripe.co.uk)

To place an order you can contact our sales team via live chat or phone. Alternatively, complete the Contact Us form above and a member of our team will get back to you as soon as possible.

VIDEOS

REMOVE DAMAGED AREA WITH A SCALPEL

MEASURE TAPE TO LENGTH

CUT TAPE TO LENGTH

CLEAN SURFACE WITH H3508 IPA SURFACE CLEANER

PEEL OFF ADHESIVE FILM

ALIGN TAPE IN PLACE

APPLY TAPE USING ROLLER

APPLY H3502 EDGE FIX

DESIGN

Please click on the images to view the dimensions.

SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)

L

ZN0027 – 200mm x 200mm

T

ZN0028 – 300mm x 200mm

X

ZN0029 – 300mm x 300mm

DOT

ZN0035 – 50mm Ø

DOT

ZN0034 – 90mm Ø

DOT

ZN0023 – 100mm Ø

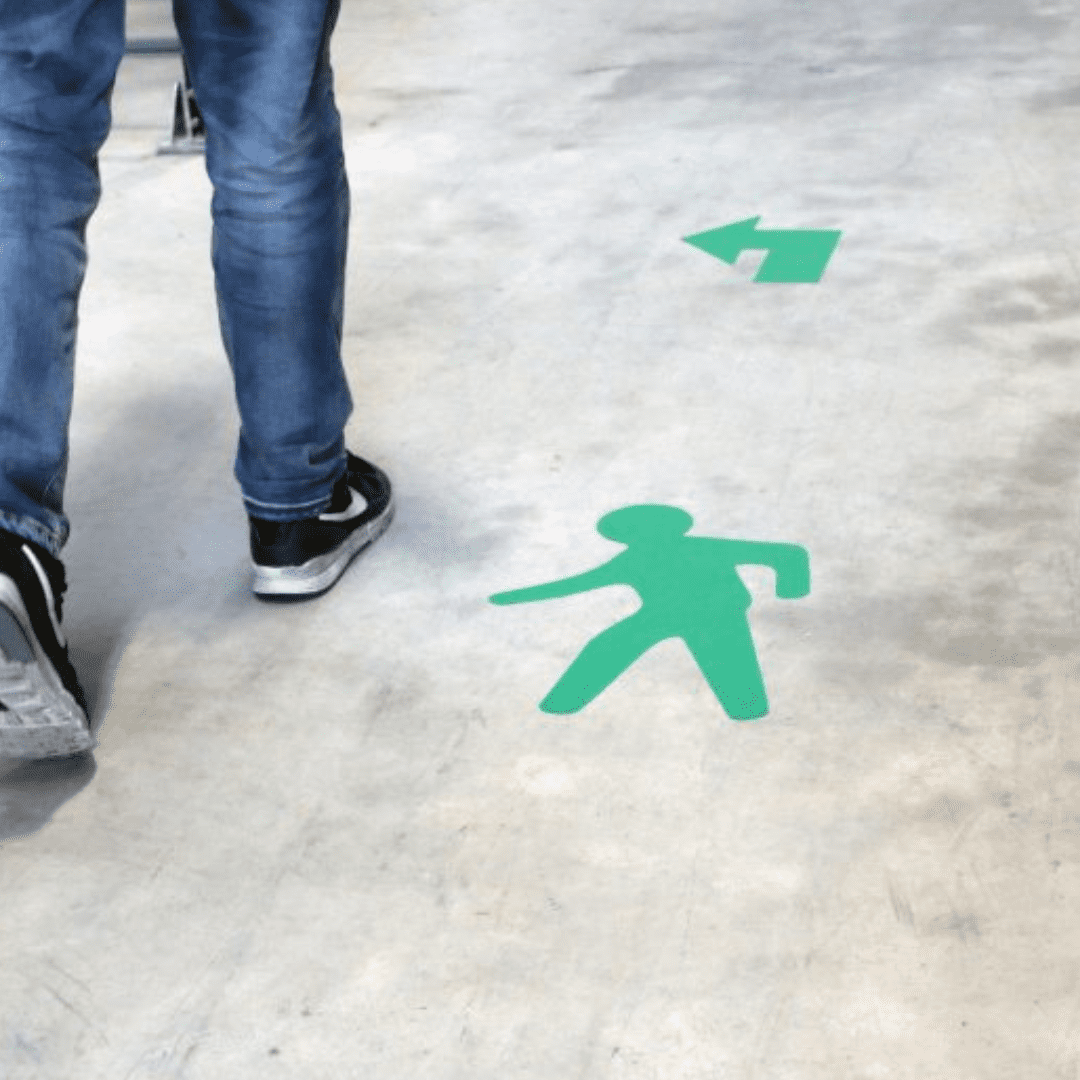

WALKING FIGURE

ZN0051 – 328mm x 500mm

FORKLIFT

ZN0038 – 543mm x 500mm

ARROW (LEFT OR RIGHT)

ZN0344 – 300mm x 230mm

ARROW

ZN0020 – 100mm x 200mm

SMALL ARROW

ZN0009 – 100mm x 65mm

LARGE ARROW

ZN0012 – 300mm x 230mm

EXTRA LARGE ARROW

ZN0333 – 1000mm x 565mm

SHORT ARROW

ZN0050 – 90mm

LINE BLOCK

ZN0021 – 150mm x 50mm

L-SHAPE

ZN0024  – 100mm x 100mm

T-SHAPE

ZN0129 – 100mm x 150mm

X-SHAPE

ZN0022 – 150mm x 150mm

TICK

ZN0004 – 200mm x 200mm

CROSS

ZN0005 – 200mm x 200mm

FEET (CLICK IMAGES TO VIEW DIMENSIONS)

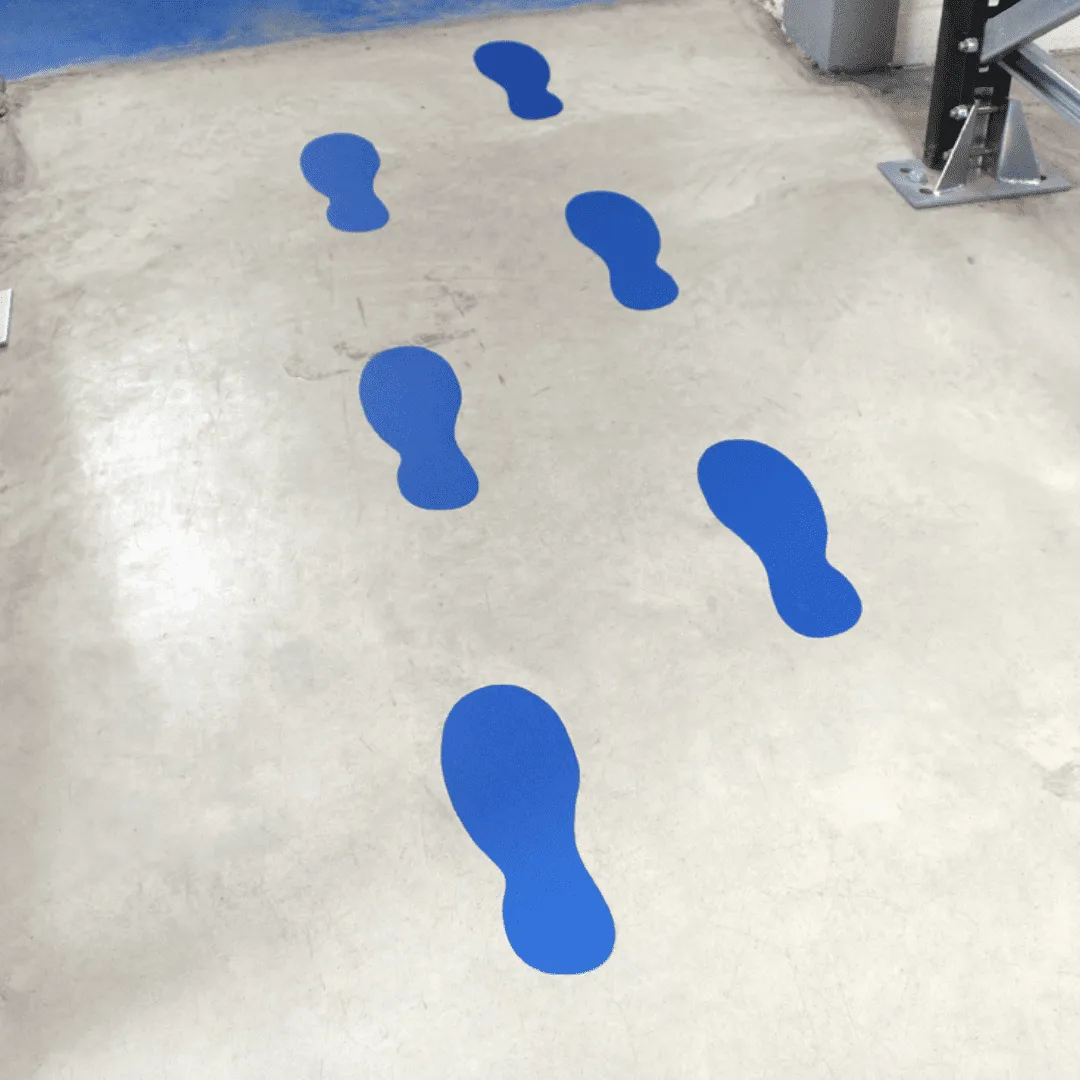

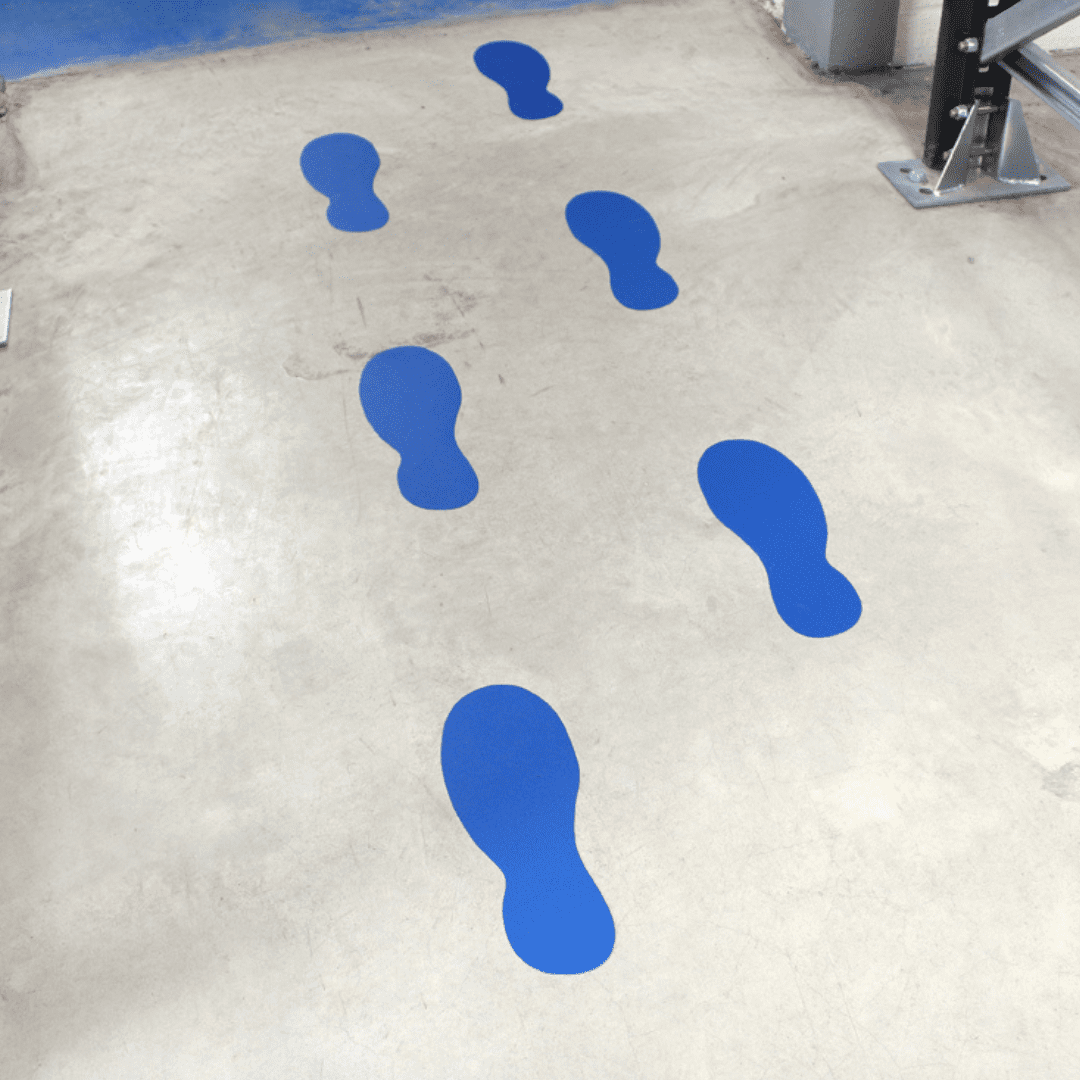

FEET

ZN0201 – 280mm x 105mm

FEET

ZN0010 – 57mm x 104mm

FEET

ZN0011 – 120mm x 210mm

SHOE

ZN0013 – 240mm x 90mm

BOOTS

ZN0016 – 300mm x 120mm

JOINS (CLICK IMAGES TO VIEW DIMENSIONS)

90° CORNER

ZN0063 – To join 50mm rolls

90° CORNER

ZN0054 – To join 75mm rolls

90° CORNER

ZN0202 – To join 100mm rolls

45° CORNER

ZN0214 – To join 50mm rolls

45° CORNER

ZN0215 – To join 75mm rolls

45° CORNER

ZN0216 – To join 100mm rolls

T-JUNCTION

ZN0055 – To join 50mm rolls

T-JUNCTION

ZN0217 – To join 75mm rolls

T-JUNCTION

ZN0339 – To join 100mm rolls

BRIDGE

ZN0061 – To join 50mm rolls

BRIDGE

ZN0062 – To Join 75mm Rolls

BRIDGE

ZN0340 – To join 100mm rolls

END CAP

ZN0157 – To join 50mm rolls

END CAP

ZN0341 – To join 75mm rolls

END CAP

ZN0342 – To join 100mm rolls

NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)

ZERO

ZN0083– 95mm

ZN0093– 180mm

ZN0093– 300mm

1

ZN0084– 95mm

ZN0094– 180mm

ZN0103– 300mm

2

ZN0085– 95mm

ZN0095– 180mm

ZN0105– 300mm

3

ZN0083– 95mm

ZN0096– 180mm

ZN0103– 300mm

4

ZN0087 – 95mm

ZN0097– 180mm

ZN0107– 300mm

5

ZN0088– 95mm

ZN0098– 180mm

ZN0108– 300mm

6

ZN0089– 95mm

ZN0099– 180mm

ZN0109– 300mm

7

ZN0090– 95mm

ZN0100– 180mm

ZN0110– 300mm

8

ZN0091– 95mm

ZN0101– 180mm

ZN0111– 300mm

9

ZN0092– 95mm

ZN0102– 180mm

ZN0112– 300mm

LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)

A

ZN0229– 95mm

ZN0255– 180mm

B

ZN0230– 95mm

ZN0230– 180mm

C

ZN0231– 95mm

ZN0257– 180mm

D

ZN0232– 95mm

ZN0258– 180mm

E

ZN0233– 95mm

ZN0259– 180mm

F

ZN0234– 95mm

ZN0260– 180mm

G

ZN0235– 95mm

ZN0261 – 180mm

H

ZN0236– 95mm

ZN0262– 180mm

I

ZN0237– 95mm

ZN0263– 180mm

J

ZN0238– 95mm

ZN0264– 180mm

K

ZN0239– 95mm

ZN0265– 180mm

L

ZN0240– 95mm

ZN0266– 180mm

M

ZN0241– 95mm

ZN0267– 180mm

N

ZN0242– 95mm

ZN0268– 180mm

O

ZN0243– 95mm

ZN0269– 180mm

P

ZN0244– 95mm

ZN0270– 180mm

Q

ZN0245 – 95mm

ZN0271– 180mm

R

ZN0246– 95mm

ZN0272– 180mm

S

ZN0247– 95mm

ZN0273– 180mm

T

ZN0248– 95mm

ZN0274– 180mm

U

ZN0249– 95mm

ZN0275– 180mm

V

ZN0250– 95mm

ZN0276– 180mm

W

ZN0251– 95mm

ZN0277– 180mm

X

ZN0252– 95mm

ZN0278– 180mm

Y

ZN0253– 95mm

ZN0279– 180mm

Z

ZN0254– 95mm

ZN0280– 180mm

COLOUR

H6905N

Pantone / RAL
Black 6 U / 9004

Average LRV
3.13

Black

H6905R

Pantone / RAL
484 U / 3001

Average LRV
15.38

Red

H6905O

Pantone / RAL
1665 U / 2010

Average LRV
23.07

Orange

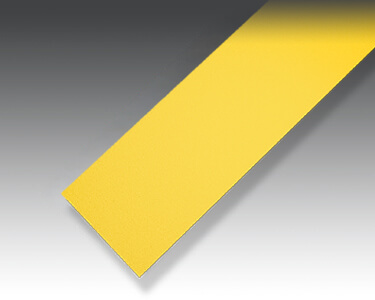

H6905Y

Pantone / RAL
137 U / 1003

Average LRV
52.33

Yellow

H6905V

Pantone / RAL
3288 U / 6032

Average LRV
14.93

Green

H6905B

Pantone / RAL
294 U / 5005

Average LRV
6.63

Blue

H6905W

Pantone / RAL
705 U / 9003

Average LRV
78.14

White

H6905D

Pantone / RAL
Black: Black 6 / 9004
Yellow: 137 U / 1003

Average LRV
Black: 3.18
Yellow: 62.88

Yellow/Black Hazard

H6905E

Pantone / RAL
Black: Black 6 U / 9004
White: 7541 U / 9003

Average LRV
Black: 2.83
White: 80.38

Black/White Hazard

H6905A

Pantone / RAL
Red: 32 U / 3028
White: White / 9003

Average LRV
Red: 25.82
White: 78.55

Red/White Hazard

DOWNLOADS

TECH SPECS

PRODUCT CODE COLOUR AV. LRV RANGE
H6905N Black 3.13 0.78
H6905R Red 15.38 0.47
H6905O Orange 23.07 0.25
H6905Y Yellow 52.33 0.96
H6905V Green 14.93 0.78
H6905B Blue 6.63 0.4
H6905W White 78.14 0.78
H6905D Black / Yellow Hazard 3.18 / 62.88 0.75 / 2.08
H6905A Red / White Hazard 25.82 / 78.55 1.14 / 1.93
