PermaStripe

Product code: H6901

Homogenous
Bevelled Edges
Easy to apply
1300mu thick
Widths from 50mm to 100mm
Free samples (takes you to permastripe.co.uk)
3 Year Guarantee

Overview
Colours
Designs

PermaStripe is the world’s most effective and durable floor marking tape.

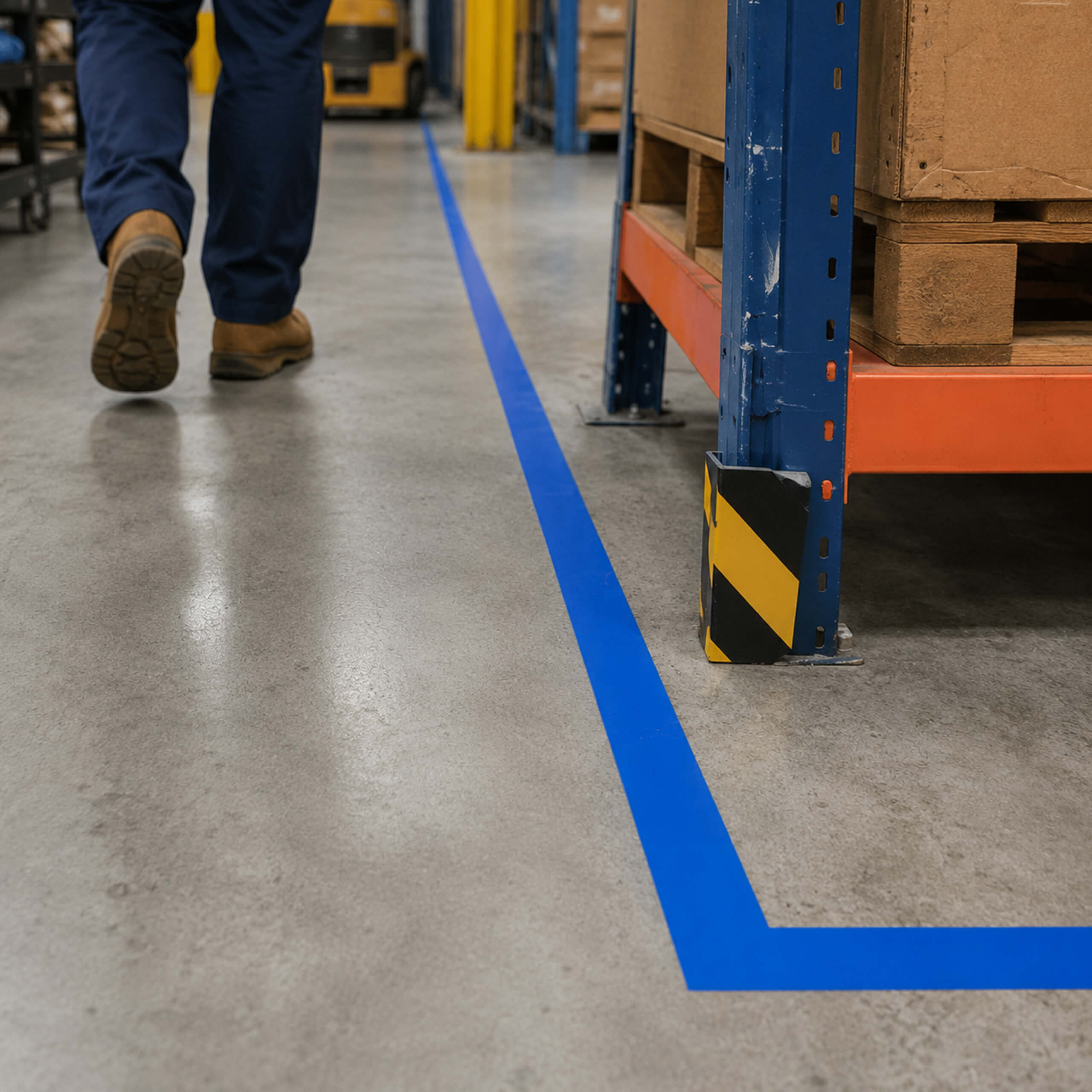

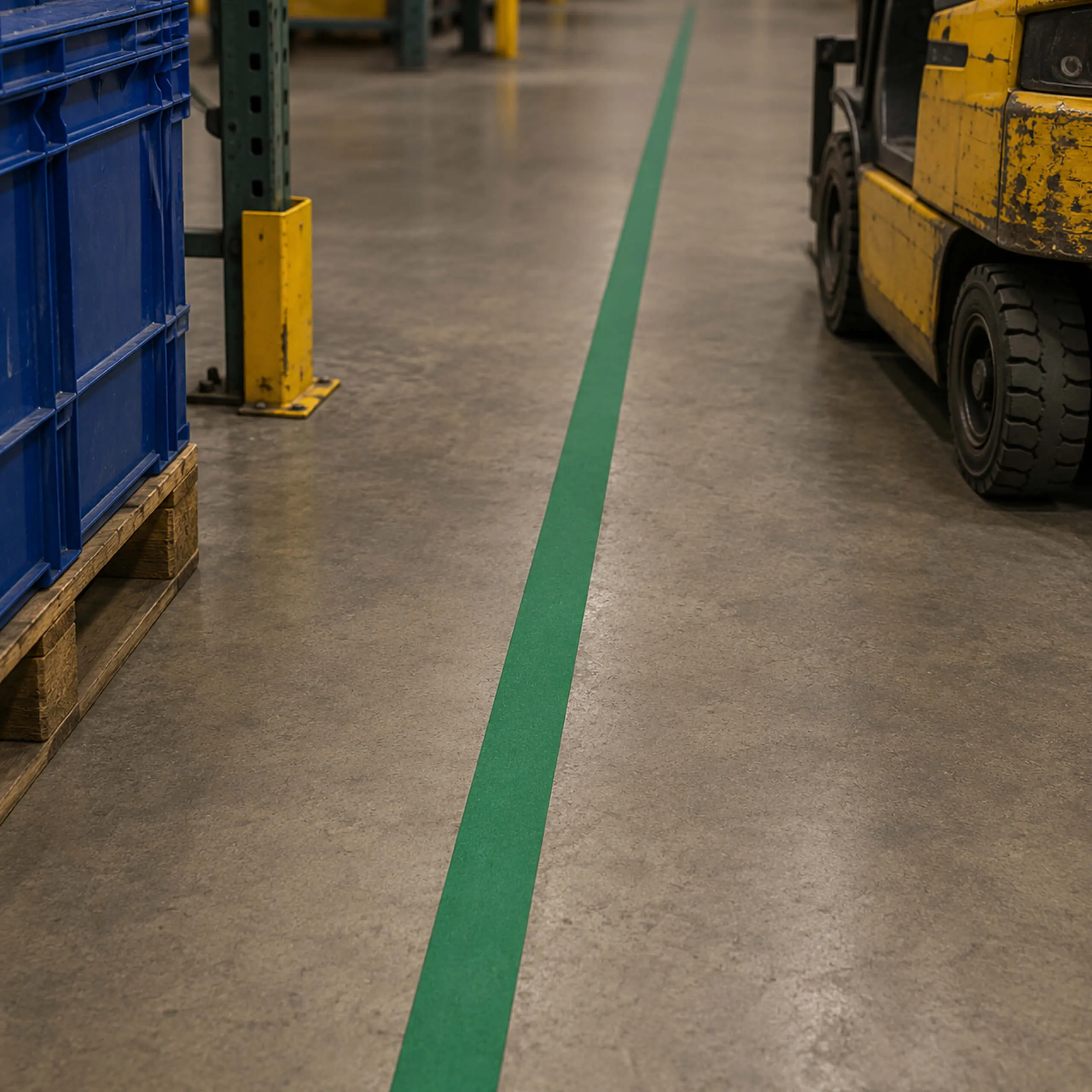

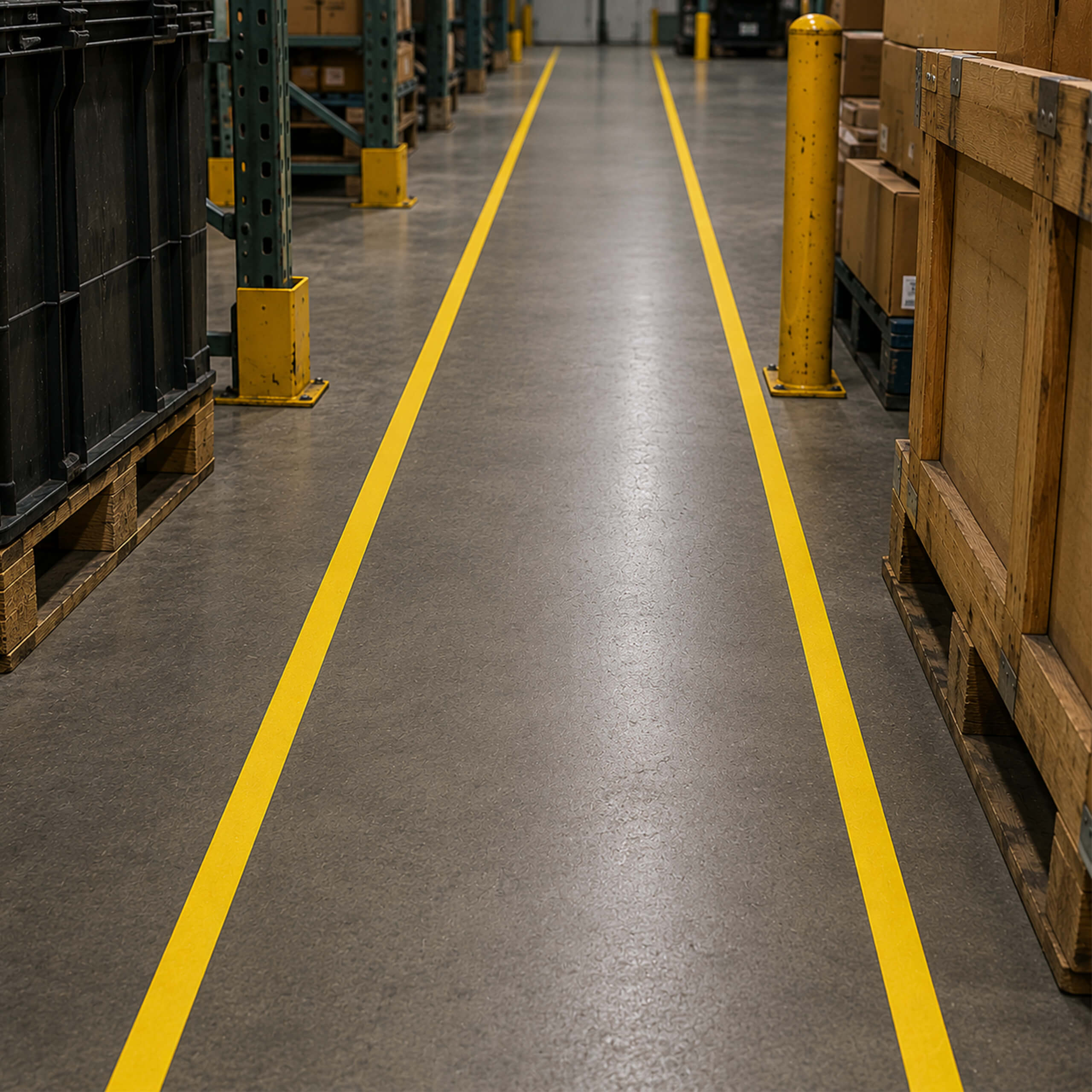

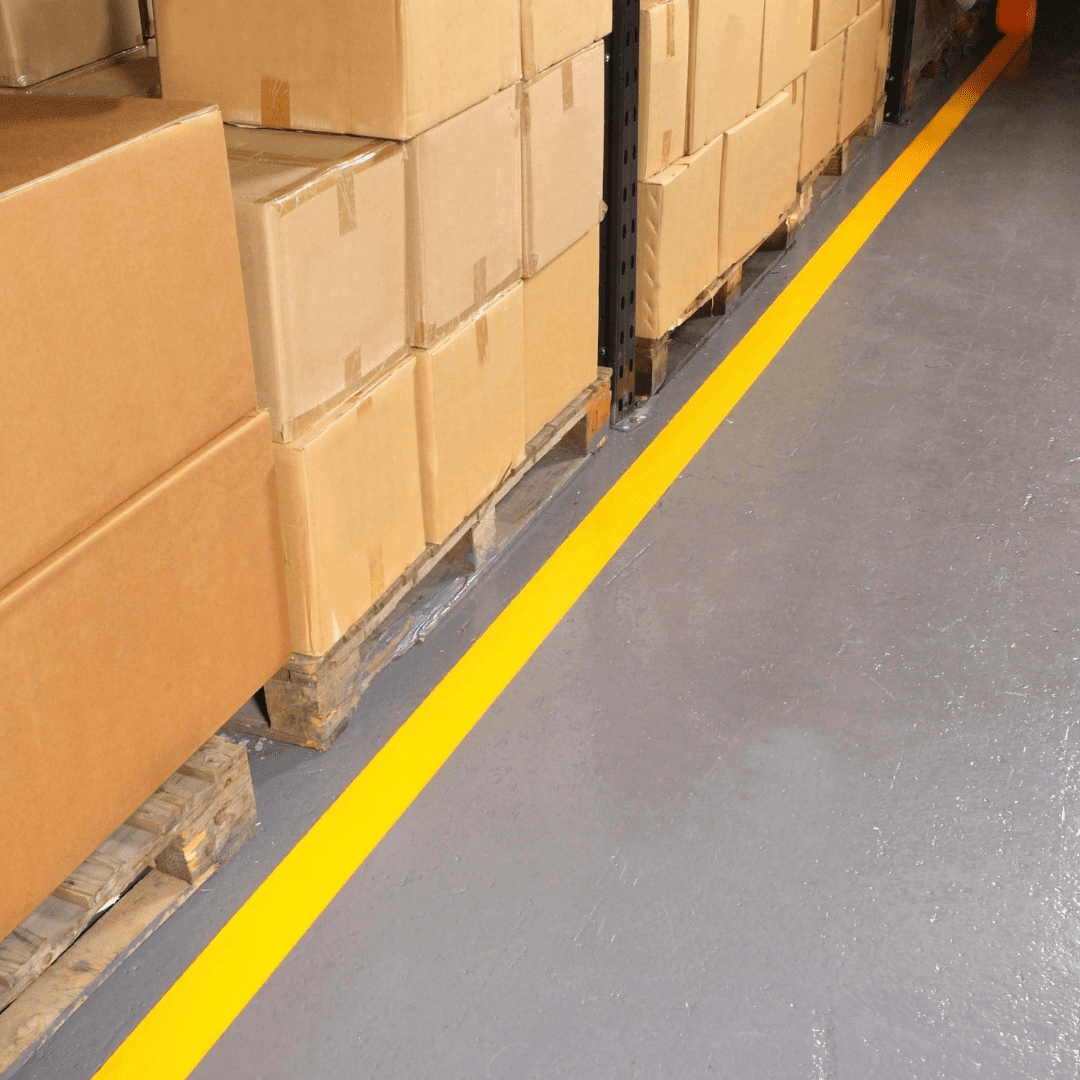

PermaStripe floor tape is the modern warehouse line marking alternative to resin and paint helping forward-thinking companies achieve 5S floor marking status.

Why Choose Permastripe?

Installation could not be easier; simply peel back the liner and stick down, Heskins have also developed their own applicator, this enables rapid installation of PermaStripe floor tape.
No Detailed preparation is required, unlike paints and resins, no fumes or solvents are emitted; the work area can be used whilst it is being applied, even in food preparation facilities.
No Curing time – you have the stripe you want instantly!
The plain colours are a solid homogeneous construction, if scratched it does not affect the colour.
Due to its extreme strength, it will not snap if removed, enabling easy workplace 5S floor marking changes, unlike paint or resin.

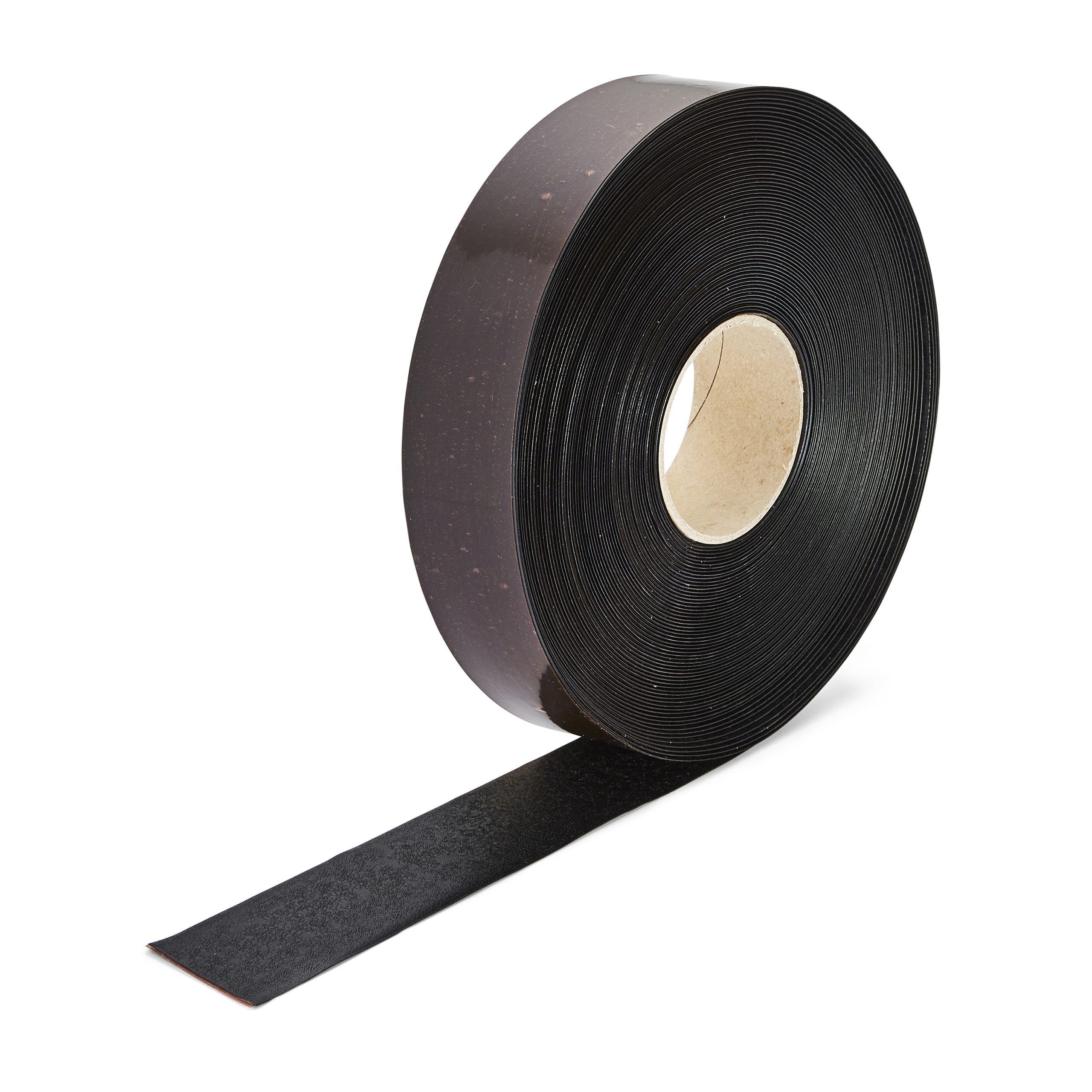

PermaStripe is available in 50mm, 75mm or 100mm roll widths, 30m rolls for long length application.
PermaStripe which is available in 75mm and 100mm only.
Available in a huge array of formats; rolls, shapes, numbers, letters, arrows and disks, we can even make PermaStripe aisle marking to your distinctive custom requirements.

Before And After PermaStripe

PermaStripe Die-Cuts

A wide range of ready-cut PermaStripe aisle marking shapes allows you to create junctions and designate special areas, all to the same high quality.

PermaStripe Factory Markers

Factory markers are 430mm in diameter, made from a semi-rigid, self-adhesive plastic film and available off the shelf in a range of prints and languages.

PermaStripe Smooth

PermaStripe does not feature the embossed surface, meaning that there are no areas on it that can trap dirt and harbor bacteria.

You can request free samples by completing the PermaStripe Smooth sample request form. (takes you to permastripe.co.uk)

Cleaning Marking Tape PermaStripe VS PermaStripe Smooth

The pattern embossed PermaStripe has crevasses that mud can get stuck in, even after cleaning. If you are looking for a smooth finish that mud can’t cling to, choose PermaStripe Smooth. The diagram below demonstrates the difference between the two line marking tapes before and after cleaning.

Before and After PermaStripe Zoomed Squares - UK and US

PermaStripe 3-Year Warranty

The Heskins warranty for PermaStripe line marking tape is conditionally warranted for 3 years from product purchase. Warranty claims are only limited to the replacement of PermaStripe. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.

How can I see it?

We enjoy sending samples, we want you to see PermaStripe heavy duty floor marking tape first hand. Please request them via the PermaStripe sample request form (takes you to permastripe.co.uk) and we will immediately dispatch a sample pack.

You can get in touch with us immediately via phone or Live Chat. Alternatively, complete the Contact Us form above and we will get back to you as soon as possible.

H6901N

Pantone / RAL
Black 6 U / 9004
Average LRV
2.35

Black

H6901R

Pantone / RAL
199 U / 3018
Average LRV
17.99

Red

H6901O

Pantone / RAL
021 U / 2009
Average LRV
35.74

Orange

H6901Y

Pantone / RAL
106 U / 1018
Average LRV
49.89

Yellow

H6901F

Pantone / RAL
803 U / 1016
Average LRV
72.26

Fluorescent Yellow

H6901NY

Pantone / RAL
137U / 1003
Average LRV
54.16

Special Yellow

H6901V

Pantone / RAL
Green U / 6018
Average LRV
24.22

Green

H6901NV

Pantone / RAL
3288U / 6032
Average LRV
18.46

Special Green

H6901B

Pantone / RAL
299 U / 5012
Average LRV
18.77

Blue

H6901BCB

Pantone / RAL
282 U / 5013
Average LRV
14.86

Dark Blue

H6901NB

Pantone / RAL
5255U / 5005
Average LRV
5.95

Special Blue

H6901W

Pantone / RAL
7541 U / 9003
Average LRV
80.29

White

H6901D

Pantone / RAL
Black: 2.35
Yellow: 49.89
Average LRV
Black: 2.13
Yellow: 7.82

Black/Yellow Hazard

H6901A

Pantone / RAL
Red: 485 U / 3001
White: 7541 U/ 9003
Average LRV
Red: 21.39
White: 74

Red/White Hazard

H6901E

Pantone / RAL
Black: Black 6 U / 9004
White: 7541 U / 9003
Average LRV
Black: 2.83
White: 80.38

Black/White Hazard

Please note that NY (Special Yellow), NV (Special Green), BCB (Dark Blue), NB (Special Blue), and E (Black & White Hazard) PermaStripe shapes are not available; these colors are only available in 50mm x 30m rolls.

SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)

L

ZN0027 – 200mm x 200mm

T

ZN0028 – 300mm x 200mm

X

ZN0029 – 300mm x 300mm

DOT

ZN0035 – 50MM Ø

DOT

ZN0034 – 90mm Ø

DOT

ZN0023 – 100mm Ø

ARROW (LEFT OR RIGHT)

ZN0344 – 300mm x 230mm

ARROW

ZN0020 – 100mm x 200mm

SMALL ARROW

ZN0009 – 100mm x 65mm

LARGE ARROW

ZN0012 – 300mm x 230mm

EXTRA LARGE ARROW

ZN0333 – 1000mm x 565mm

SHORT ARROW

ZN0050 – 90mm

LINE BLOCK

ZN0021 – 150mm x 50mm

L-SHAPE

ZN0024 – 100mm x 100mm

T-SHAPE

ZN0129 – 100mm x 150mm

X-SHAPE

ZN0022 – 150mm x 150mm

FEET (CLICK IMAGES TO VIEW DIMENSIONS)

FEET

ZN0201 – 280mm x 105mm

FEET

ZN0010 – 57mm x 104mm

FEET

ZN0011 – 120mm x 210mm

SHOE

ZN0013 – 240mm x 90mm

BOOTS

ZN0016 – 300mm x 120mm

JOINS (CLICK IMAGES TO VIEW DIMENSIONS)

90° CORNER

ZN0063 – To join 50mm rolls

90° CORNER

ZN0054 – To join 75mm rolls

90° CORNER

ZN0202 – To join 100mm rolls

45° CORNER

ZN0214 – To join 50mm rolls

45° CORNER

ZN0215 – To join 75mm rolls

45° CORNER

ZN0216 – To join 100mm rolls

T-JUNCTION

ZN0055 – To join 50mm rolls

T-JUNCTION

ZN0217 – To join 75mm rolls

T-JUNCTION

ZN0339 – To join 100mm rolls

BRIDGE

ZN0061 – To join 50mm rolls

BRIDGE

ZN0062 – To Join 75mm Rolls

BRIDGE

ZN0340 – To join 100mm rolls

END CAP

ZN0157 – To join 50mm rolls

END CAP

ZN0341 – To join 75mm rolls

END CAP

ZN0342 – To join 100mm rolls

NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)

ZERO

ZN0083– 95mm ZN0093– 180mm ZN0093– 300mm

1

ZN0084– 95mm ZN0094– 180mm ZN0103– 300mm

2

ZN0085– 95mm ZN0095– 180mm ZN0105– 300mm

3

ZN0083– 95mm ZN0096– 180mm ZN0103– 300mm

4

ZN0087– 95mm ZN0097– 180mm ZN0107– 300mm

5

ZN0088– 95mm ZN0098– 180mm ZN0108– 300mm

6

ZN0089– 95mm ZN0099– 180mm ZN0109– 300mm

7

ZN0090– 95mm ZN0100– 180mm ZN0110– 300mm

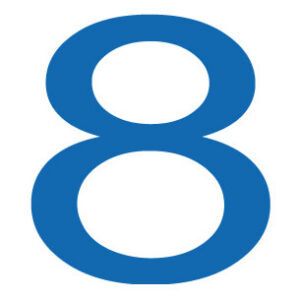

8

ZN0091– 95mm ZN0101– 180mm ZN0111– 300mm

9

ZN0092– 95mm ZN0102– 180mm ZN0112– 300mm

LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)

A

ZN0229– 95mm ZN0255– 180mm

B

ZN0230– 95mm ZN0230– 180mm

C

ZN0231– 95mm ZN0257– 180mm

D

ZN0232– 95mm ZN0258– 180mm

E

ZN0233– 95mm ZN0259– 180mm

F

ZN0234– 95mm ZN0260– 180mm

G

ZN0235– 95mm ZN0261 – 180mm

H

ZN0236– 95mm ZN0262– 180mm

I

ZN0237– 95mm ZN0263– 180mm

J

ZN0238– 95mm ZN0264– 180mm

K

ZN0239– 95mm ZN0265– 180mm

L

ZN0240– 95mm ZN0266– 180mm

M

ZN0241– 95mm ZN0267– 180mm

N

ZN0242– 95mm ZN0268– 180mm

O

ZN0243– 95mm ZN0269– 180mm

P

ZN0244– 95mm ZN0270– 180mm

Q

ZN0245 – 95mm ZN0271– 180mm

R

ZN0246– 95mm ZN0272– 180mm

S

ZN0247– 95mm ZN0273– 180mm

T

ZN0248– 95mm ZN0274– 180mm

U

ZN0249– 95mm ZN0275– 180mm

V

ZN0250– 95mm ZN0276– 180mm

W

ZN0251– 95mm ZN0277– 180mm

X

ZN0252– 95mm ZN0278– 180mm

Y

ZN0253– 95mm ZN0279– 180mm

Z

ZN0254– 95mm ZN0280– 180mm

Light Reflectance Values

Product code	Colour	Av. LRV	Range
H6901N	Black	2.35	1.96
H6901R	Red	17.99	2.71
H6901O	Orange	35.74	0.56
H6901Y	Yellow	49.89	10.36
H6901F	Fluorescent Yellow	72.26	4.04
H6901NY	Special Yellow	54.16	2.68
H6901V	Green	24.22	3.74
H6901NV	Special Green	18.46	3.15
H6901B	Blue	18.77	1.79
H6901J	Dark Blue	14.86	3.49
H6901NB	Special Blue	5.95	4.34
H6901W	White	80.29	2.74
H6901D	Black / Yellow Hazard	2.35 / 49.89	2.13 / 7.82
H6901A	Red / White Hazard	21.39 / 74	1.66 / 4.23
H6901E	Black / White Hazard	2.83 / 80.38	1.81 / 2.3

Regulations, Certifications & Other Downloads

Document that depicts our PermaStripe Colours and their use within a warehouse to meet 5S Optimisation requirements

5S Optimisation Colour Chart

Download
