PermaStripe Smooth Manufacturer

H6906

  • Homogenous
  • Bevelled Edges
  • Easy to apply
  • 1300mu thick
  • Widths from 50mm to 100mm
  • Free samples (takes you to permastripe.co.uk)
  • 3 Year Guarantee
5S Optimisation

5S Optimised Floor Marking

3 Year Guarantee

High Quality Line Marking

Smooth Surface

PERMASTRIPE SMOOTH

PermaStripe is the world’s most effective and durable floor marking tape and is available in an alternative smoother finish, PermaStripe Smooth.

PermaStripe Smooth floor tape is the modern warehouse line marking alternative to resin and paint helping forward-thinking companies achieve 5S floor marking status. It has been created after the demand for a line marking material easier to clean and more attractive was made. Our sleek, smooth PermaStripe has all the same benefits as our flagship PermaStripe range but with one minor difference. It does not feature the embossed surface, meaning that there are no areas on it that can trap dirt and harbor bacteria.

PermaStripe Smooth is perfect for areas that carry heavily regulated hygiene standards. It still provides durable, 5S optimisation, with a smooth aesthetic surface that is easier to clean and would indeed complement any area it is applied in.

You can request free samples by completing the PermaStripe Smooth sample request form. (takes you to permastripe.co.uk)

PermaStripe Smooth is available in 50mm, 75mm and 100mm x 30m rolls.

Why Choose PermaStripe Smooth?

  • Installation could not be easier; simply peel back the liner and stick down, Heskins have also developed their own applicator, this enables rapid installation of smooth marking tape.
  • No Detailed preparation is required, unlike paints and resins, no fumes or solvents are emitted; the work area can be used whilst it is being applied, even in food preparation facilities.
  • No Curing time – you have the stripe you want instantly!
  • The plain colours are a solid homogeneous construction, if scratched it does not affect the colour.
  • Due to its extreme strength, it will not snap if removed, enabling easy workplace 5S floor marking changes, unlike paint or resin.
  • Available in 50mm, 75mm or 100mm roll widths, 30m rolls for long length application.
  • Available in a huge array of formats; rolls, shapes, numbers, letters, arrows and disks, we can even make PermaStripe aisle marking to your distinctive custom requirements.
  • It’s easy to clean due to it’s smooth surface.

Before And After PermaStripe

Applications

The optimal application temperature for PermaStripe Smooth is 10°C or above.

Application Temperature Graph -30 to 70 Grey    Optimal Service Temperature

PermaStripe Smooth Die-Cuts

A wide range of ready-cut PermaStripe Smooth aisle marking shapes allows you to create junctions and designate special areas, all to the same high quality.

PermaStripe Smooth Factory Markers

Factory markers are 430mm in diameter, made from a semi-rigid, self-adhesive plastic film and available off the shelf in a range of prints and languages.

PermaStripe

PermaStripe is the world’s most effective and durable floor marking tape.

PermaStripe floor tape is the modern warehouse line marking alternative to resin and paint helping forward-thinking companies achieve 5S floor marking status.

PermaStripe Smooth 3-Year Warranty

The Heskins warranty for PermaStripe Smooth floor marking tape is conditionally warranted for 3 years from product purchase. Warranty claims are only limited to the replacement of PermaStripe Smooth. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.

How can I see it?

We enjoy sending samples, we want you to see PermaStripe Smooth floor marking tape first hand. Please request them via the PermaStripe Smooth sample request form (takes you to permastripe.co.uk) and we will immediately dispatch a sample pack.

You can get in touch with us immediately via phone or Live Chat. Alternatively, complete the Contact Us form above and we will get back to you as soon as possible.

VIDEOS

REMOVE DAMAGED AREA WITH A SCALPEL

MEASURE TAPE TO LENGTH

CUT TAPE TO LENGTH

CLEAN SURFACE WITH H3508 IPA SURFACE CLEANER

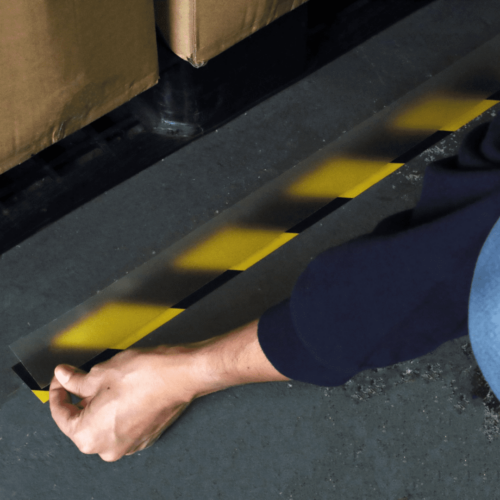

PEEL OFF ADHESIVE FILM

ALIGN TAPE IN PLACE

APPLY TAPE USING ROLLER

APPLY H3502 EDGE FIX

DESIGN

Please click on the images to view the Dimensions.

SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)

L

ZN0027 – 200mm x 200mm

T

ZN0028 – 300mm x 200mm

X

ZN0029 – 300mm x 300mm

DOT

ZN0035 – 50MM Ø

DOT

ZN0034 – 90mm Ø

DOT

ZN0023 – 100mm Ø

ARROW (LEFT OR RIGHT)

ZN0344 – 300mm x 230mm

ARROW

ZN0020 – 100mm x 200mm

SMALL ARROW

ZN0009 – 100mm x 65mm

LARGE ARROW

ZN0012 – 300mm x 230mm

EXTRA LARGE ARROW

ZN0333 – 1000mm x 565mm

SHORT ARROW

ZN0050 – 90mm

LINE BLOCK

ZN0021 – 150mm x 50mm

L-SHAPE

ZN0024 – 90mm

T-SHAPE

ZN0129 – 100mm x 150mm

X-SHAPE

ZN0022 – 150mm x 150mm

FEET (CLICK IMAGES TO VIEW DIMENSIONS)

FEET

ZN0201 – 280mm x 105mm

FEET

ZN0010 – 57mm x 104mm

FEET

ZN0011 – 120mm x 210mm

SHOE

ZN0013 – 240mm x 90mm

BOOTS

ZN0016 – 300mm x 120mm

JOINS (CLICK IMAGES TO VIEW DIMENSIONS)

90° CORNER

ZN0063 – To join 50mm rolls

90° CORNER

ZN0054 – To join 75mm rolls

90° CORNER

ZN0202 – To join 100mm rolls

45° CORNER

ZN0214 – To join 50mm rolls

45° CORNER

ZN0215 – To join 75mm rolls

45° CORNER

ZN0216 – To join 100mm rolls

T-JUNCTION

ZN0055 – To join 50mm rolls

T-JUNCTION

ZN0217 – To join 75mm rolls

T-JUNCTION

ZN0339 – To join 100mm rolls

BRIDGE

ZN0061 – To join 50mm rolls

BRIDGE

ZN0062 – To Join 75mm Rolls

BRIDGE

ZN0340 – To join 100mm rolls

END CAP

ZN0157 – To join 50mm rolls

END CAP

ZN0341 – To join 75mm rolls

END CAP

ZN0342 – To join 100mm rolls

NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)

ZERO

ZN0083– 95mm ZN0093– 180mm ZN0093– 300mm

1

ZN0084– 95mm ZN0094– 180mm ZN0103– 300mm

2

ZN0085– 95mm ZN0095– 180mm ZN0105– 300mm

3

ZN0083– 95mm ZN0096– 180mm ZN0103– 300mm

4

ZN0087– 95mm ZN0097– 180mm ZN0107– 300mm

5

ZN0088– 95mm ZN0098– 180mm ZN0108– 300mm

6

ZN0089– 95mm ZN0099– 180mm ZN0109– 300mm

7

ZN0090– 95mm ZN0100– 180mm ZN0110– 300mm

8

ZN0091– 95mm ZN0101– 180mm ZN0111– 300mm

9

ZN0092– 95mm ZN0102– 180mm ZN0112– 300mm

LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)

A

ZN0229– 95mm ZN0255– 180mm

B

ZN0230– 95mm ZN0230– 180mm

C

ZN0231– 95mm ZN0257– 180mm

D

ZN0232– 95mm ZN0258– 180mm

E

ZN0233– 95mm ZN0259– 180mm

F

ZN0234– 95mm ZN0260– 180mm

G

ZN0235– 95mm ZN0261 – 180mm

H

ZN0236– 95mm ZN0262– 180mm

I

ZN0237– 95mm ZN0263– 180mm

J

ZN0238– 95mm ZN0264– 180mm

K

ZN0239– 95mm ZN0265– 180mm

L

ZN0240– 95mm ZN0266– 180mm

M

ZN0241– 95mm ZN0267– 180mm

N

ZN0242– 95mm ZN0268– 180mm

O

ZN0243– 95mm ZN0269– 180mm

P

ZN0244– 95mm ZN0270– 180mm

Q

ZN0245 – 95mm ZN0271– 180mm

R

ZN0246– 95mm ZN0272– 180mm

S

ZN0247– 95mm ZN0273– 180mm

T

ZN0248– 95mm ZN0274– 180mm

U

ZN0249– 95mm ZN0275– 180mm

V

ZN0250– 95mm ZN0276– 180mm

W

ZN0251– 95mm ZN0277– 180mm

X

ZN0252– 95mm ZN0278– 180mm

Y

ZN0253– 95mm ZN0279– 180mm

Z

ZN0254– 95mm ZN0280– 180mm

COLOUR

H6906N

Pantone / RAL
Black 6 U / 9004

Average LRV
3.36

Black

H6906R

Pantone / RAL
199 U / 3018

Average LRV
19.93

Red

H6906O

Pantone / RAL
021 U / 2008

Average LRV
36.23

Orange

H6906Y

Pantone / RAL
108 U / 1018

Average LRV
64.63

Yellow

H6906V

Pantone / RAL
Green U / 6018

Average LRV
30.08

Green

H6906B

Pantone / RAL
281 U / 5012

Average LRV
20.98

Blue

H6906W

Pantone / RAL
7541 U / 9003

Average LRV
88.5

White

H6906D

Pantone / RAL
Black: Black 6 / 9004
Yellow: 1235 U / 1021

Average LRV
Black: 2.97
Yellow: 61.82

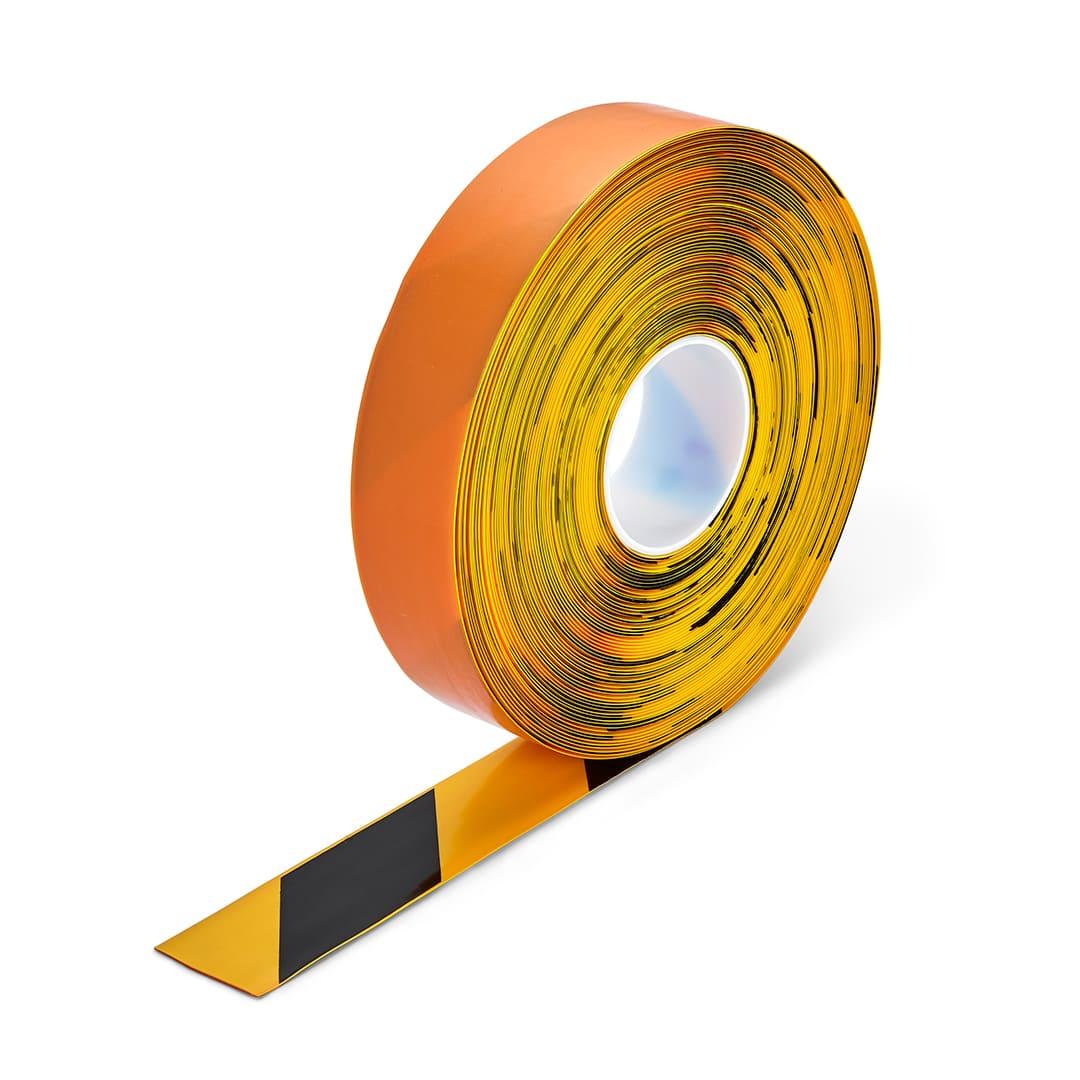

Black/Yellow Hazard

H6906A

Pantone / RAL
Red: 485 U / 3001
White: 7541 / 9003

Average LRV
Red: 25.19
White: 77.42

Red/White Hazard

DOWNLOADS

TECH SPECS

PRODUCT CODE COLOUR AV. LRV RANGE
H6906N Black 3.36 0.44
H6906R Red 19.93 0.43
H6906O Orange 36.23 0.64
H6906Y Yellow 64.63 2.87
H6906V Green 30.08 0.98
H6906B Blue 20.98 1.1
H6906W White 88.5 0.09
H6906D Black / Yellow Hazard 2.97 / 61.82 0.5 / 0.49
H6906A Red / White Hazard 25.19 / 77.42 1.08 / 1.22
