Standard Safety-Grip
Product code: H3401
- 60 grit aluminium oxide surface
- Internal and external application
- Water resistant
- Available in rolls from 19mm to 1168mm
- Overview
- Video
- Colours
Standard Safety-Grip tape is our flagship product, being the first product we created and sold back in 1997.
Applications

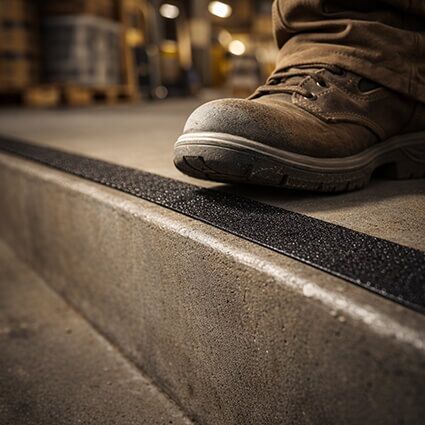

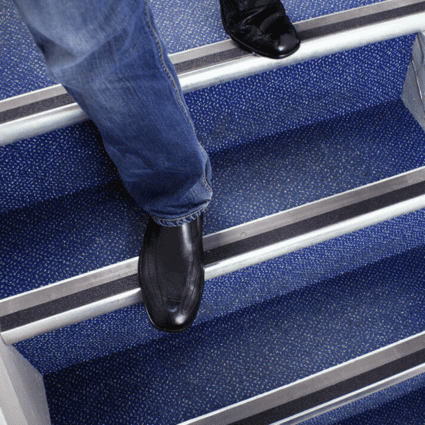

As H3401 standard Safety-Grip is used for general applications, it is perfect for use in domestic or commercial environments. Standard Safety-Grip can be used for additional slip-protection on steps, to covering entire walkways.
Sizes

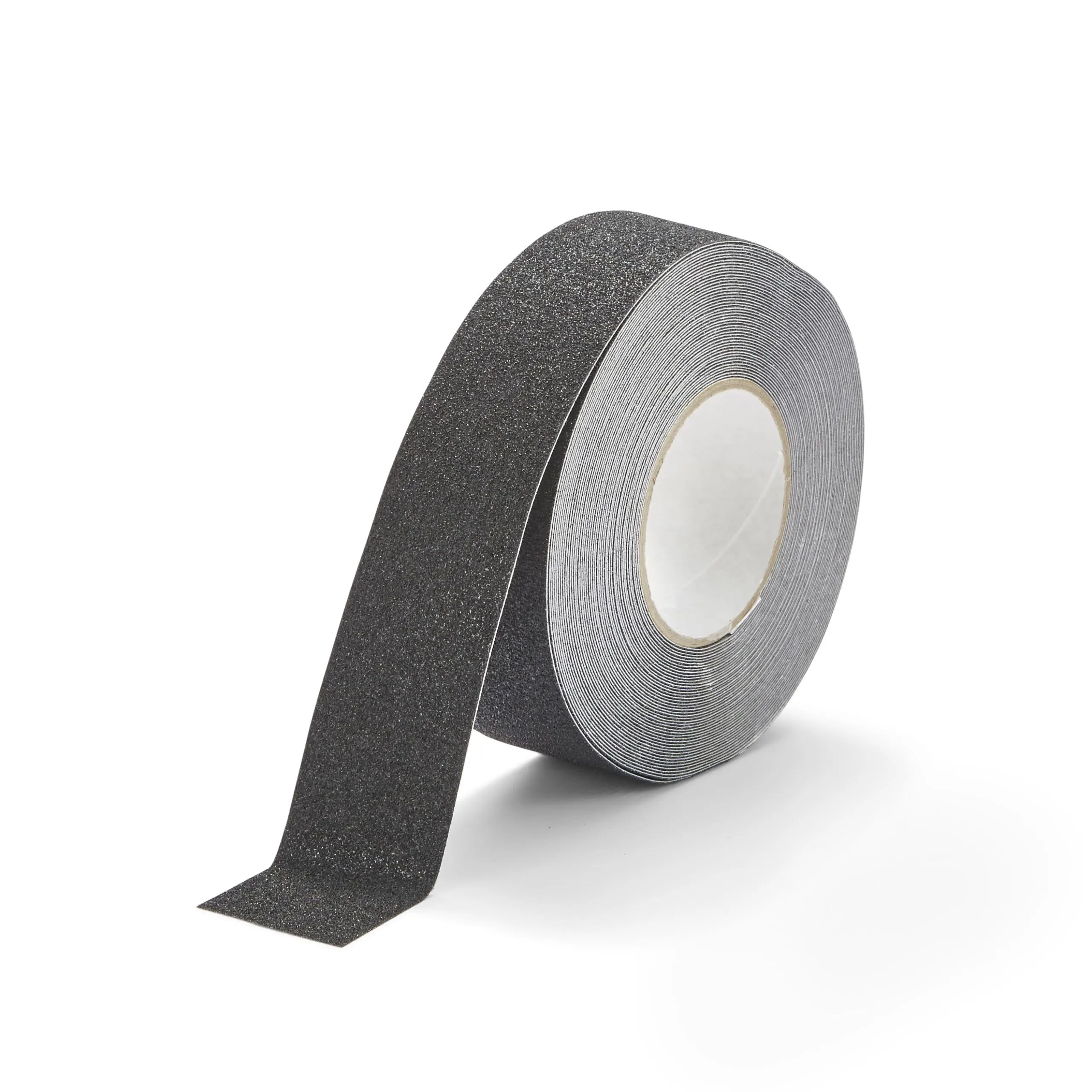

We produce our standard Safety-Grip tape in any available colour from 19mm up to 1168mm, widths of between 10mm to 18mm on special request. Standard Safety-Grip is available off the shelf for immediate dispatch in 25mm, 50mm, 75mm, 100mm and 150mm rolls. Full-width logs are also available. All rolls have a stock length of 18.3 metres, and 100 metres upon request.
Material
H3401 standard anti slip tape is made from a fine grade aluminium oxide, which makes it suitable for use in a wide range of applications. The grit is a medium anti-slip abrasive coating. Our standard Safety-Grip is great for general floor tape requirements possessing excellent levels of grip (measured as Coefficient of Friction). Safety-Grip is water resistant (if applied onto a non-porous surface, we do also offer a complete range of ancillaries) and has exceptional durability in external or internal areas.
Standard Safety-Grip is BS 7976:2 pendulum tested with results available on the tech specs tab.
Custom Anti Slip Tape
Aside from our off the shelf products, dependent on order quantity, we can produce standard Safety-Grip in a wide range of sizes, shapes and colours (matching Pantone or RAL reference).
For more information on standard Safety-Grip tape, or to place an order, you can contact us by phone, Live Chat or fill out the Contact Us form above and a member of the sales team will get back to you as soon as possible.

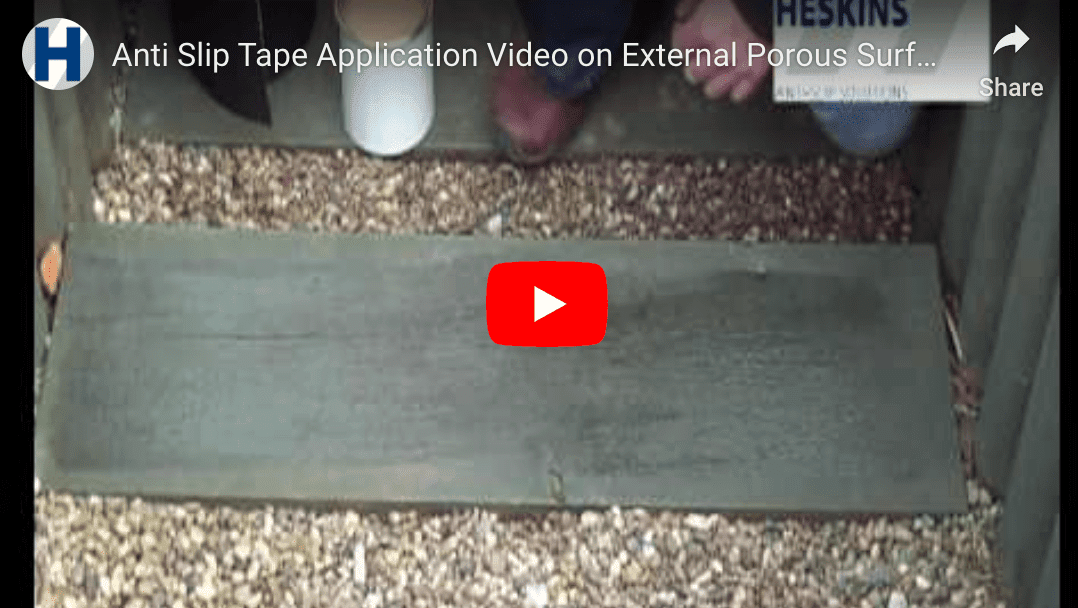

Anti Slip Tape Application onto External, Porous Surface
Anti Slip Tape Application onto Internal Surface
H3401N
Pantone / RAL
Black U / 9004
Average LRV
3.8
H3401R
Pantone / RAL
032 U / 3020
Average LRV
13.3
H3401O
Pantone / RAL
172 U / 2004
Average LRV
30.1
H3401Y
Pantone / RAL
113 U / 1023
Average LRV
42.50
H3401F
Pantone / RAL
395 U / 1016
Average LRV
103.6
H3401V
Pantone / RAL
342 U / 6010
Average LRV
7.5
H3401B
Pantone / RAL
286 U / 5000
Average LRV
7.7
H3401E
Pantone / RAL
4515 U / 1019
Average LRV
30.14
H3401G
Pantone / RAL
181 U / 8002
Average LRV
6.5
H3401S
Pantone / RAL
428 U / 7004
Average LRV
30.3
H3401T
Pantone / RAL
Transparent
Average LRV
43.6
H3401W
Pantone / RAL
White / 9003
Average LRV
83.7
H3401D
Pantone / RAL
Black: Black 3C / 9017
Yellow: 113U / 1023
Average LRV
Black: 0
Yellow: 37.5
H3433D
Pantone / RAL
Black: Black 6C / 9004
Yellow: 7408U / 1023
Average LRV
Black: 5.1
Yellow: 52.17
H3434D
Pantone / RAL
Black: Black 3C / 9004
Yellow: 123U / 1021
Average LRV
Black: 8.85
Yellow: 46.39

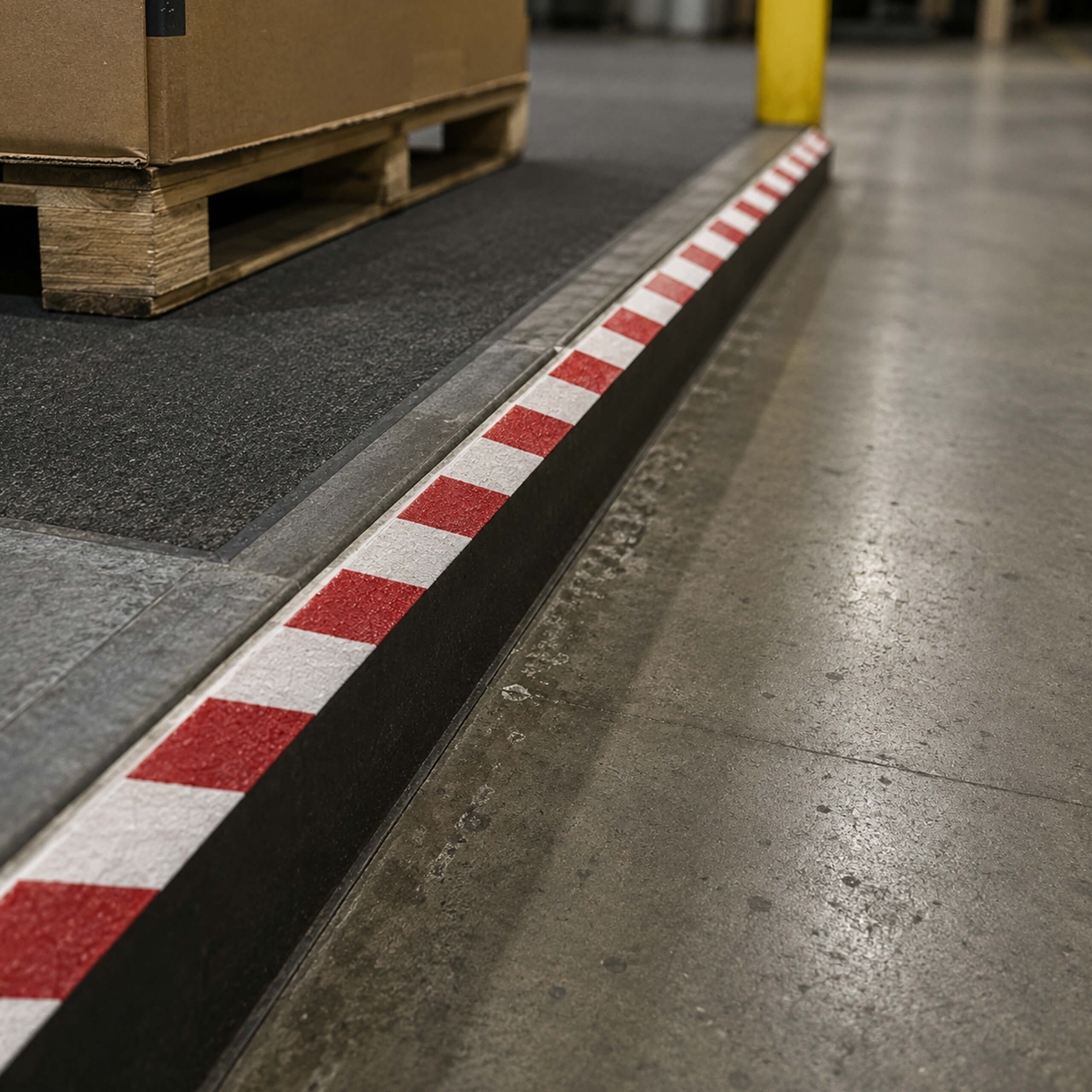

H3401A
Pantone / RAL
Red:
White:
Average LRV
Red: 4
White: 72
H3411C
Pantone / RAL
Beige: Warm Grey 1 U / 1013
Green: 349 U / 6016
Black: 419 U / 7024
Brown: 477 U / 8025
Average LRV
Beige: 41.4
Green: 12.84
Black: 4.86
Brown: 11.85
Light Reflectance Values
| Product code | Colour | Av. LRV | Range |
|---|---|---|---|
| H3401N | Black | 3.8 | 0.16 |
| H3401R | Red | 5.50 | 1 |
| H3401O | Orange | 18.25 | 1 |
| H3401Y | Yellow | 42.50 | 3 |
| H3401F | Fluorescent Yellow | 100 | 0 |
| H3401V | Green | 2.25 | 1 |
| H3401B | Blue | 1.25 | 1 |
| H3401G | Brown | 0.25 | 1 |
| H3401E | Beige | 30.14 | 3.16 |
| H3401S | Grey | 23.50 | 1 |
| H3401W | White | 75.25 | 3 |
| H3401D | Black / Yellow Hazard | 0 / 37.5 | 0 / 3 |
| H3433D | Vivid Black / Yellow Hazard | 5.1 / 52.17 | 1.72 / 1.15 |
| H3434D | Shaded Black / Yellow Hazard | 8.85 / 46.39 | 2.91 / 1.52 |
| H3401A | Red / White Hazard | 4 / 72 | 0 / 2 |
| H3411C | Camouflage (Beige/Green/Black/Brown) | 41.4 / 12.84 / 4.86 / 11.85 | 2.38 / 3.25 / 3.81 / 3.79 |
Coefficient of Friction
| Dry Surface Test Results | Wet Surface Test Results |
|---|---|
| 102 TRL | 71 TRL |
Regulations and Certifications
Below is a table denoting what regulations standard Safety Grip meets and what certs, if any, are available.
| R118 (Burning behavior of materials used in the construction of commercial vehicles) | Download |
