Coarse Safety-Grip

H3402

  • 36 grit aluminium oxide surface
  • Suitable for construction and more heavy-duty sites
  • Available in widths from 19mm to 1168mm
  • Coarser surface to prevent clogging by dust and mud

COARSE SAFETY-GRIP

Coarse Anti Slip Tape

Anti Slip Tape Suitable For Muddy Areas

Durable Anti Slip Tape

Anti Slip Tape With High Grip

Coarse Safety-Grip has, like the name suggests, a coarser grit on its surface than that of standard.

The grit is still the same substance, aluminium oxide; but the difference is the grit granules are larger with deeper valleys and higher peaks. A deep anti-slip coating helps to prevent clogging with dirt, dust, ice etc. A deeper grit provides great durability.

Coarse Safety-Grip is BS 7976:2 pendulum tested with results available on the tech specs tab.

Application

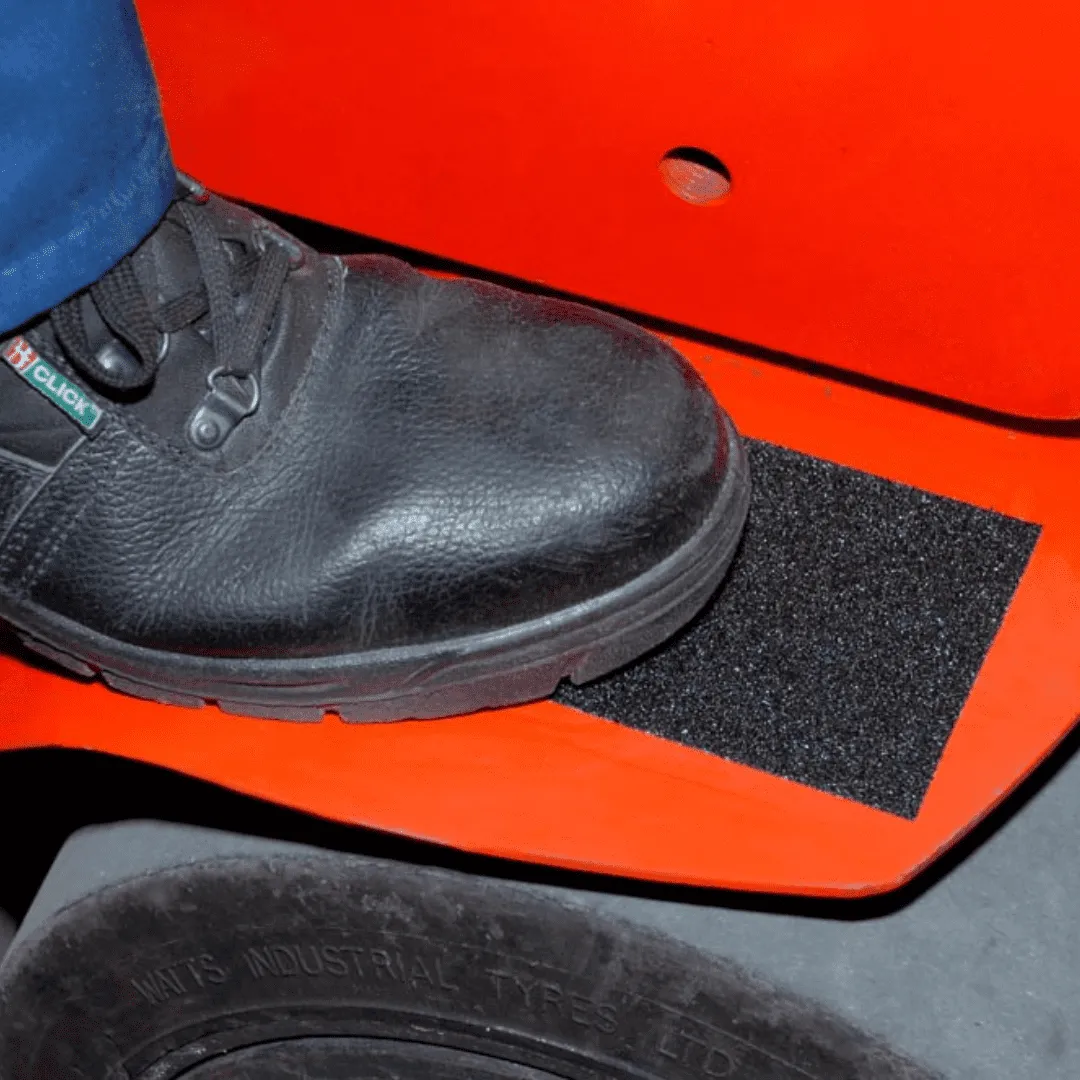

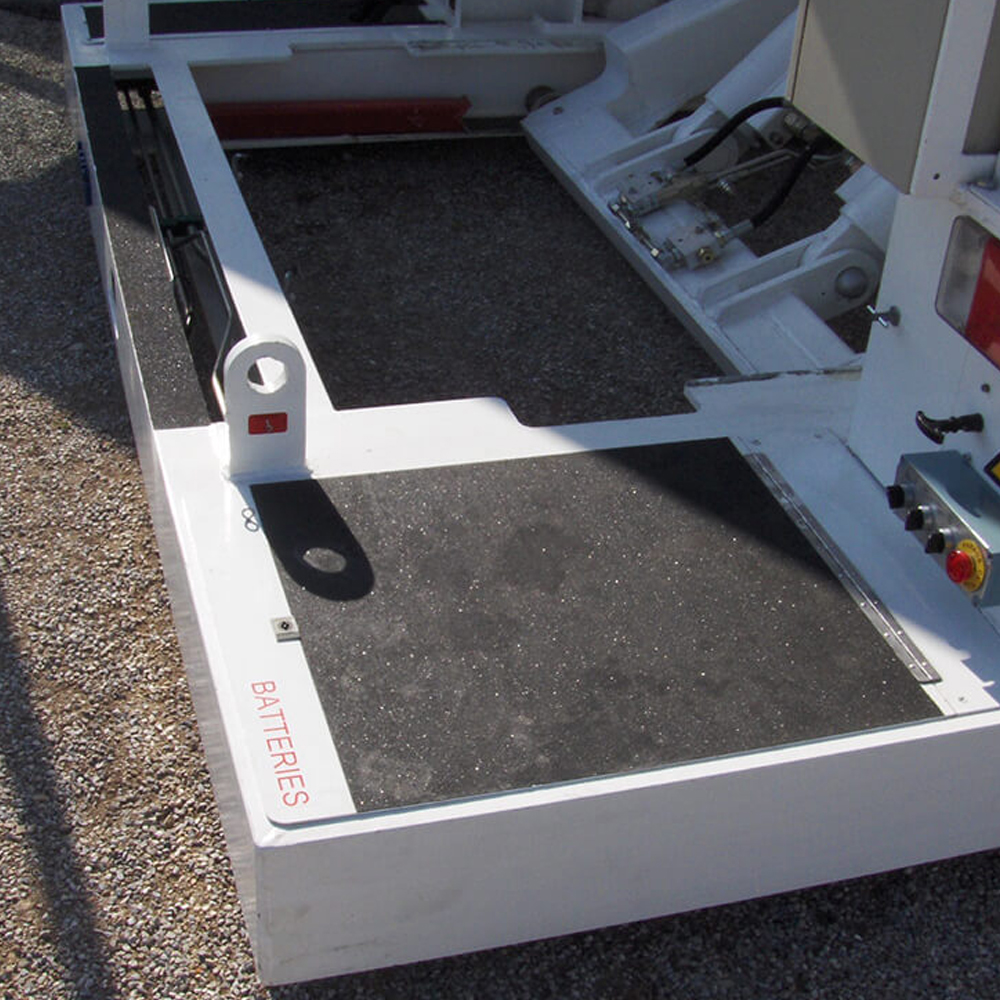

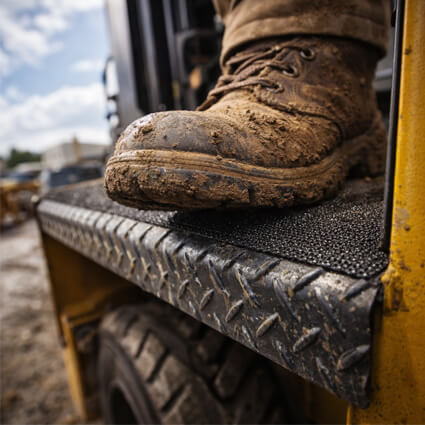

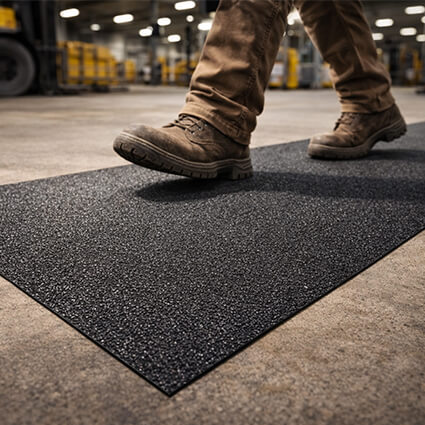

Due to the abrasive levels that coarse Safety-Grip possesses, it is more suitable for areas exposed to constant coverage of dirt or water. Industrial or construction sites do suffer from exposure to dirt, amongst other things. The deep recesses on the surface of coarse grip tape prevent it from becoming clogged within reason, allowing it to provide adequate slip protection in demanding environments. The optimal application temperature for coarse Safety-Grip is 10°C  or above.

Application Temperature Graph: -40°C to 70°C Grey    Optimal Service Temperature

Sizes

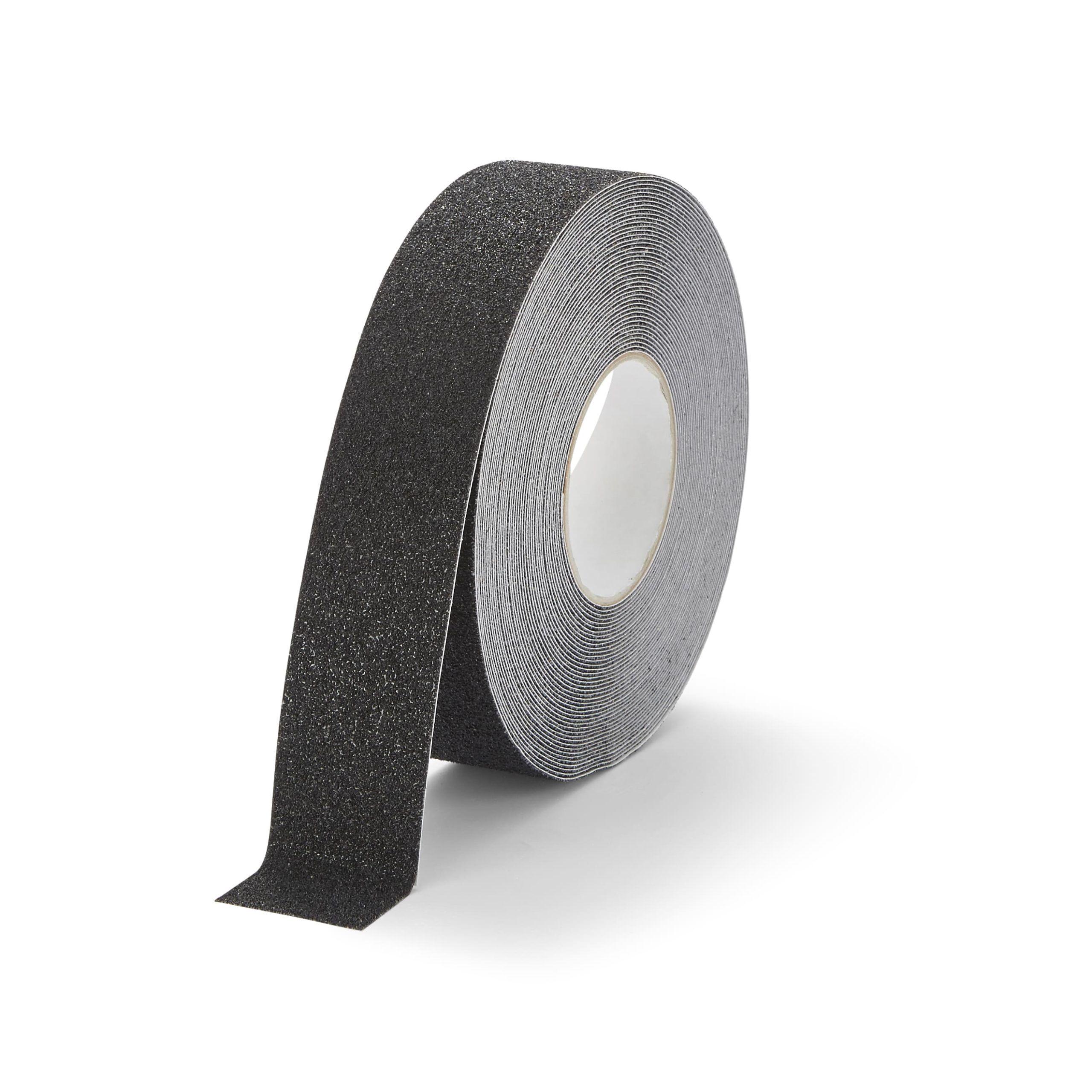

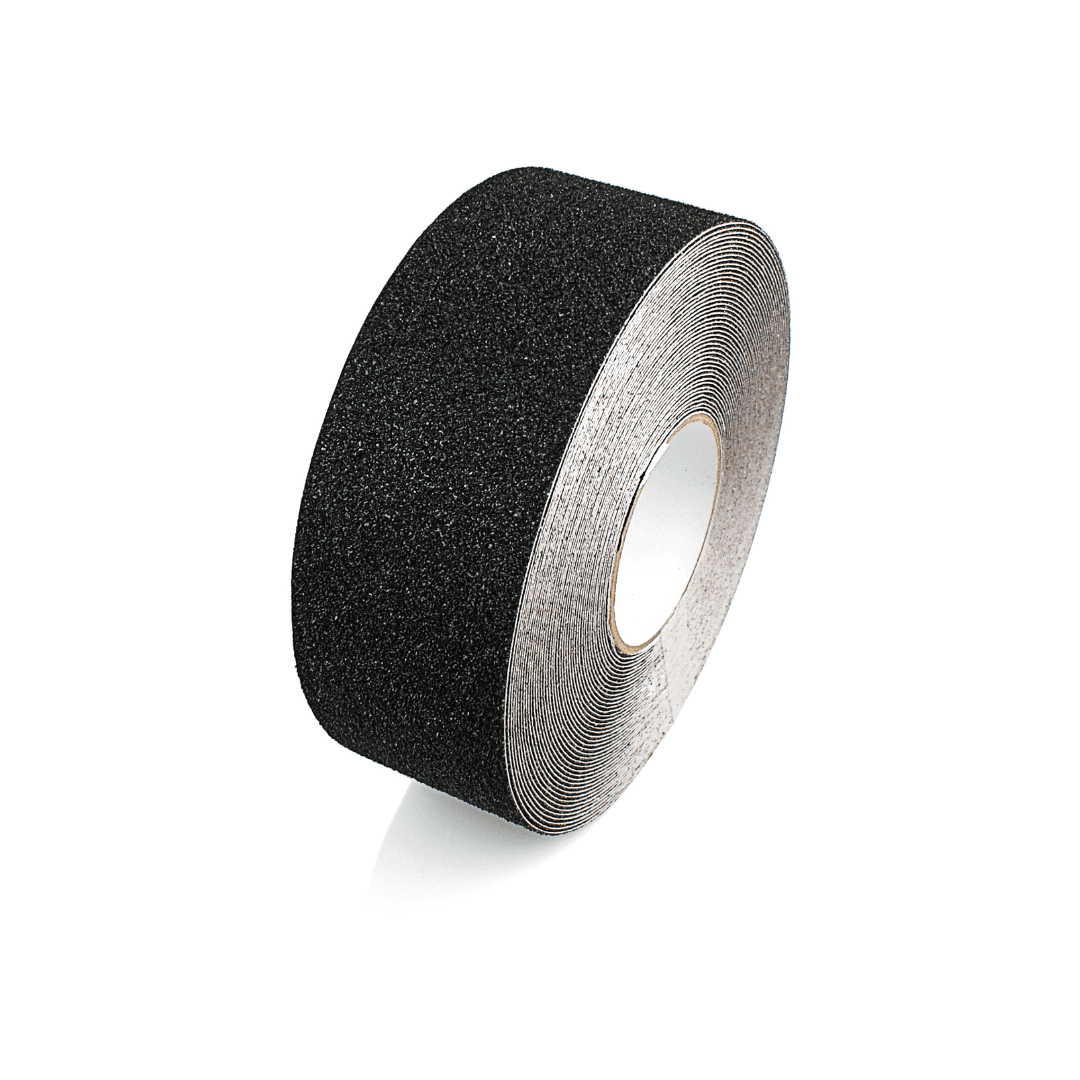

Any width from 19mm up to 1168mm is possible. Widths of between 10mm and 18mm are available on special request. Sizes available off the shelf are 25mm, 50mm, 75mm, 100mm and 150mm in width, as well as full-width logs. All stock sizes have a length of 18.3m.

Tape Thickness

Coarse Safety-Grip™ features a total applied thickness of 1.02mm, engineered to deliver superior traction in demanding environments. Its thicker abrasive layer provides enhanced durability and a more aggressive grip profile, making it ideal for areas exposed to moisture, dirt, or heavy foot traffic. Supported by a resilient PVC backing, the tape maintains strong adhesion while still offering enough flexibility to conform to a variety of industrial surfaces. This construction ensures long-lasting slip resistance where a deeper, more rugged texture is required—without compromising installation ease or overall performance.

Grip Angle R13 Coefficient of Friction Lab Testing

At Heskins, we’re committed to providing top-tier safety solutions for all environments. Our Coarse Safety-Grip anti-slip tape is no exception. Rigorously tested in the lab, our Coarse Safety-Grip tape has earned an outstanding R13 rating, showcasing its remarkable anti-slip properties. Designed with a coarser texture for enhanced traction, this tape is engineered to provide maximum grip even in the most challenging conditions.

Customisation Options

Heskins offers a range of customisation options for H3402 Coarse Safety-Grip, allowing you to tailor the product to specific site conditions, visibility requirements, and safety needs. Depending on order quantity, coarse anti-slip tape can be produced in virtually any size, shape, or colour, including matches to RAL and Pantone references for consistent branding or hazard marking.

Custom printing further enhances the functionality of Coarse Safety-Grip by transforming its tough, high-traction surface into a clear visual communication tool. Safety symbols, directional arrows, hazard indicators, and area-specific labels can be added directly to the tape, making it suitable for heavy-use industrial areas and challenging outdoor environments. This dual-purpose capability improves both physical safety and on-site awareness. For example, on construction sites, printed warnings such as “USE CAUTION” paired with directional arrows can highlight unstable walkways, sloped ground, or temporary access routes, helping workers navigate safely through uneven or slippery terrain.

If you are interested in H3402 coarse Safety-Grip tape, you can contact us by phone, Live Chat or complete the Contact Us form above and we will get back to you as soon as possible.

VIDEOS

The Three Grades of Safety-Grip Tape

CLEAN SURFACE WITH H3508 IPA SURFACE CLEANER

Measure Tape To Length

Cut Tape To Length

PEEL OF ADHESIVE BACKING

APPLY TAPE USING EVEN PRESSURE

DESIGN

Please click on the images to view the Dimensions.

L

TL528 – 200mm x 200mm

COLOUR

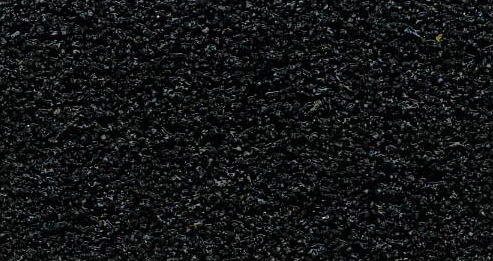

Coarse Safety-Grip H3402 – black color swatch

H3402N

Pantone / RAL
Black U / 9004

Average LRV
0

Black
Coarse Safety-Grip H3402 – yellow color swatch

H3402Y

Pantone / RAL
113 U / 1023

​Average LRV
​38.25

Yellow

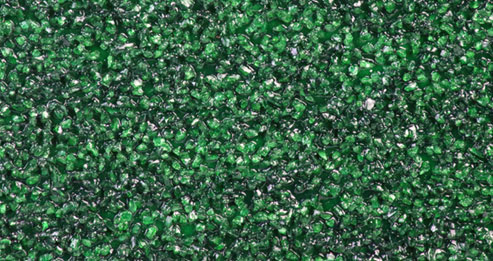

Coarse Safety-Grip H3402 – green color swatch

H3402V

Pantone / RAL
342 U / 6010

​Average LRV
​1.50

Green
Coarse Safety-Grip H3402 – white, beige color swatch

H3402W

Pantone / RAL
White / 9003

​Average LRV
​57.40

White

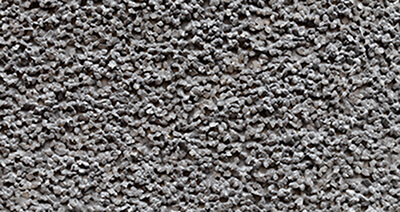

Coarse Safety-Grip H3402 – grey color swatch

H3402S

Pantone / RAL
4276 C/ 7045

​Average LRV
17.1

Grey
Coarse Safety-Grip H3402 – transparent color swatch

H3402T

Pantone / RAL
Transparent, completely clear

​Average LRV
49.7

Transparent
Coarse Safety-Grip H3402 – black/yellow hazard stripe, beige color swatch

H3402D

Pantone / RAL
Black: Black U / 9004
Yellow: 113 U / 1023

Average LRV
Black: 1.38
Yellow: 35.73

Black/Yellow

DOWNLOADS

TECH SPECS

PRODUCT CODE COLOUR AV. LRV RANGE
H3402N Black 0 0
H3402V Green 1.50 5
H3402Y Yellow 38.25 2
H3402S Grey 17.1 2.55
H3402T Transparent 49.7 7.6
H3402D Black/ Yellow 1.38/ 35.73 1.47/ 3.31

COEFFICIENT OF FRICTION

DRY SURFACE TEST RESULTS WET SURFACE TEST RESULTS
99 TRL 80 TRL
