PermaRoute 5S Floor Marking System

H6903

  • Layered construction
  • Laminated, colour surface print
  • Low profile
  • 960mu thick
  • Roll widths up to 1168mm
  • Free samples (takes you to permastripe.co.uk)
  • 2-year guarantee
5S Optimisation

5S Optimised Floor Marking

2 Year Guarantee

High Quality Line Marking

Durable Floor Marking

PERMAROUTE

PermaRoute is the world’s only complete floor marking system. Over many years we have developed the range to encompass every section of floor marking for factories, warehouses, assembly areas and logistic bases.

Applications

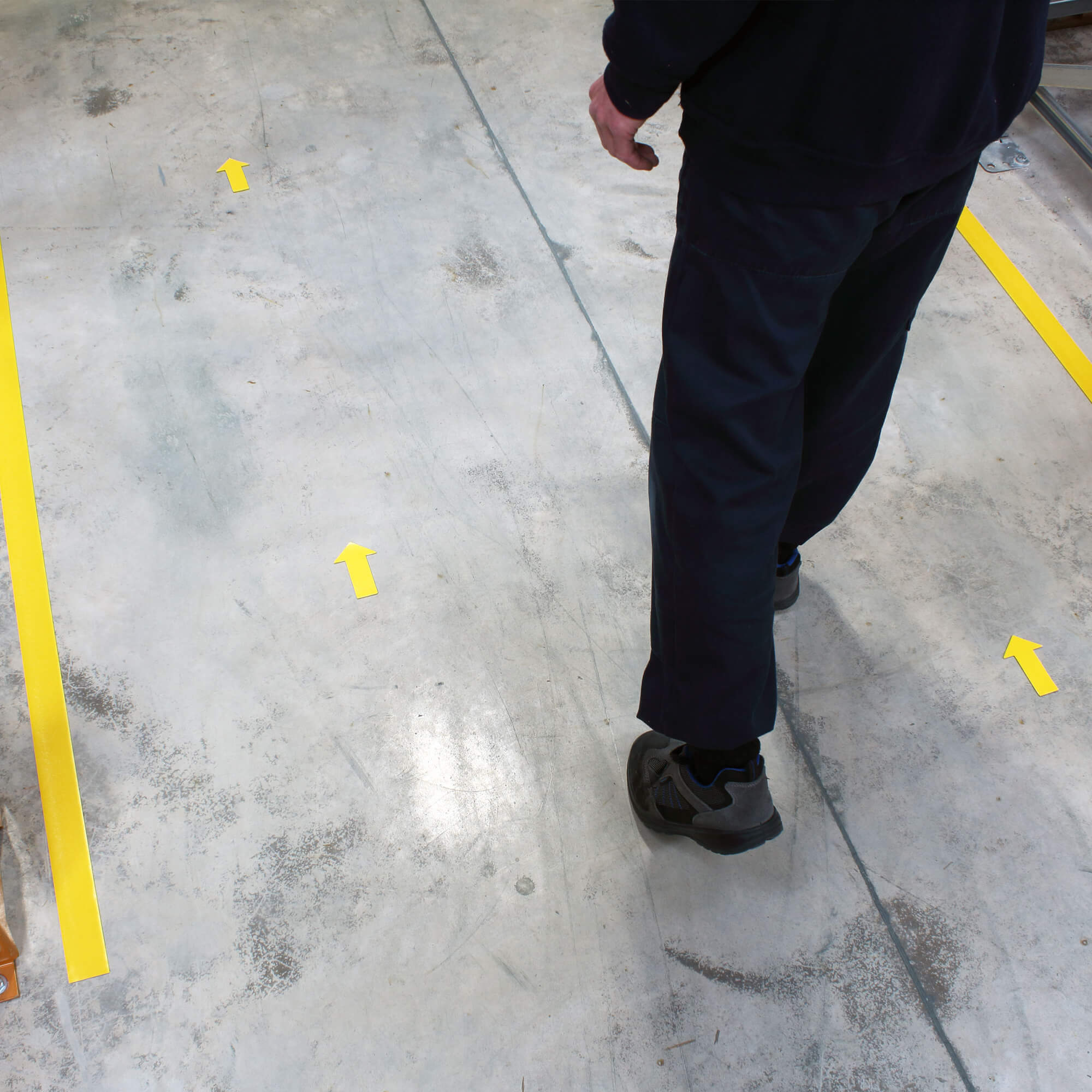

With PermaRoute you’re not restricted to simple lines. It’s a versatile floor marking system that allows you to develop a clear set of visual aids to ensure that your facility not only looks clean and efficient but also helps your process controls.

PermaRoute can be created bespoke to suit your requirements, we produce lines, angles, joins, shapes and outlines in all industry-standard colours. Our team are experts in specification and can provide advice that has been gathered from delaying with companies as varied as aerospace, automotive, logistics and defence to name a few.

Custom components can be created to your specification further expanding the possibilities of making PermaRoute a site-wide floor marking solution.

The optimal application temperature for PermaRoute is 10°C or above.

Application Temperature Graph -30 to 70 Grey    Optimal Service Temperature

Product Testing

Our PermaRoute line marking tape is strictly tested in controlled laboratory settings to test its slip-resistant properties. We’re thrilled to announce that our PermaRoute tape has earned an impressive R10 rating, solidifying its position as a top-tier solution for line marking needs.

What preparation is required?

Hardly any, the surface merely need to be clean, dry and free from grease. Porous surfaces may need priming prior to application, our team are always happy to help with knowledgeable advice.

What advantage does it hold over paint and resin marking systems?

Major advantages! Unlike liquid systems, the self-adhesive, heavy duty floor marking tape is instantly applied and the area can be used immediately afterwards. If a colour coded area changes with new aisle marking required then PermaRoute can be removed cleanly as it won’t snap or fracture, and this is really important for food preparation or pharmaceutical areas, as no fumes or solvents are generated.

Is it durable?

Absolutely, this is a 960mu thickness, vastly different and more durable than anything else available.

I have a large site, is there a fast way of applying it?

Look at our applicator (takes you to permastripe.co.uk) available for sale or hire, we completely redesigned it, making it easier to use, easier to transport and cheaper.

We want to be able to display corporate colours throughout our warehouse, as you are a manufacturer is this something you can create?

Very easily, and it is something we do on a weekly basis. We can match any RAL, Pantone or NCS, please enquire for MOQs etc.

PermaRoute 2-Year Warranty

The Heskins warranty for PermaRoute is conditionally warranted for 2 years from product purchase. Warranty claims are only limited to the replacement of PermaRoute. The warranty does not cover items being dragged, pushed or scraped across such as pallets or transit skids.

If you would like to request samples, please complete the PermaRoute sample request form. (takes you to permastripe.co.uk)

For more information, please contact us by phone, live chat or alternatively, complete the Contact Us form above and we will get back to you as soon as possible.

VIDEOS

REMOVE DAMAGED AREA WITH A SCALPEL

MEASURE TAPE TO LENGTH

CUT TAPE TO LENGTH

CLEAN SURFACE WITH H3508 IPA SURFACE CLEANER

PEEL OFF ADHESIVE FILM

ALIGN TAPE IN PLACE

APPLY TAPE USING ROLLER

APPLY H3502 EDGE FIX

DESIGN

Please click on the images to view the dimensions.

SHAPES (CLICK IMAGES TO VIEW DIMENSIONS)

L

ZN0027 – 200mm x 200mm

T

ZN0028 – 300mm x 200mm

X

ZN0029 – 300mm x 300mm

DOT

ZN0035 – 50mm Ø

DOT

ZN0034 – 90mm Ø

DOT

ZN0023 – 100mm Ø

WALKING FIGURE

ZN0051 – 328mm x 500mm

FORKLIFT

ZN0038 – 543mm x 500mm

ARROW (LEFT OR RIGHT)

ZN0344 – 300mm x 230mm

ARROW

ZN0020 – 100mm x 200mm

SMALL ARROW

ZN0009 – 100mm x 65mm

LARGE ARROW

ZN0012 – 300mm x 230mm

EXTRA LARGE ARROW

ZN0333 – 1000mm x 565mm

SHORT ARROW

ZN0050 – 90mm

LINE BLOCK

ZN0021 – 150mm x 50mm

L-SHAPE

ZN0024 – 300mm x 230mm

T-SHAPE

ZN0129 – 100mm x 150mm

X-SHAPE

ZN0022 – 150mm x 150mm

FEET (CLICK IMAGES TO VIEW DIMENSIONS)

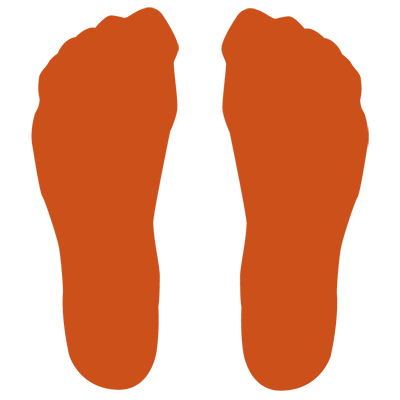

FEET

ZN0201 – 280mm x 105mm

FEET

ZN0010 – 57mm x 104mm

FEET

ZN0011 – 120mm x 210mm

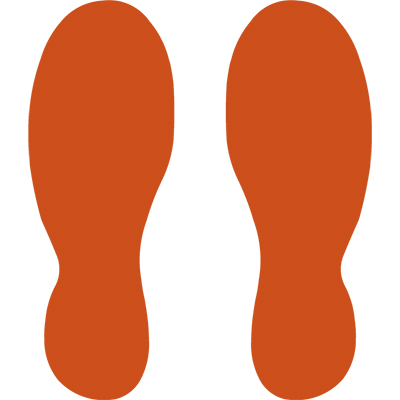

SHOE

ZN0013 – 240mm x 90mm

BOOT

ZN0016 – 300mm x 120mm

JOINS (CLICK IMAGES TO VIEW DIMENSIONS)

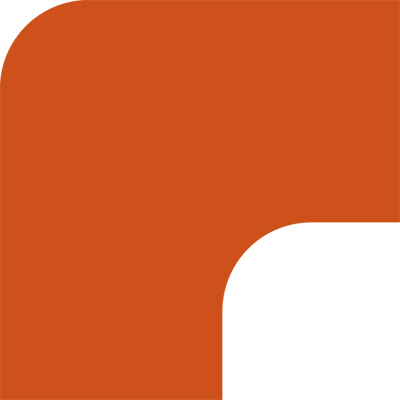

90° CORNER

ZN0063 – To join 50mm rolls

90° CORNER

ZN0054 – To join 75mm rolls

90° CORNER

ZN0202 – To join 100mm rolls

45° CORNER

ZN0214 – To join 50mm rolls

45° CORNER

ZN0215 – To join 75mm rolls

45° CORNER

ZN0216 – To join 100mm rolls

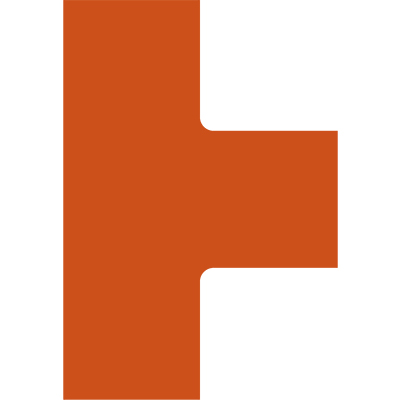

T-JUNCTION

ZN0055 – To join 50mm rolls

T-JUNCTION

ZN0217 – To join 75mm rolls

T-JUNCTION

ZN0339 – To join 100mm rolls

BRIDGE

ZN0061 – To join 50mm rolls

BRIDGE

ZN0062 – To Join 75mm Rolls

BRIDGE

ZN0340 – To join 100mm rolls

END CAP

ZN0157 – To join 50mm rolls

END CAP

ZN0341 – To join 75mm rolls

END CAP

ZN0342 – To join 100mm rolls

NUMBERS (CLICK IMAGES TO VIEW DIMENSIONS)

ZERO

ZN0083– 95mm

ZN0093– 180mm

ZN0093– 300mm

1

ZN0084– 95mm

ZN0094– 180mm

ZN0103– 300mm

2

ZN0085– 95mm

ZN0095– 180mm

ZN0105– 300mm

3

ZN0083– 95mm

ZN0096– 180mm

ZN0103– 300mm

4

ZN0087– 95mm

ZN0097– 180mm

ZN0107– 300mm

5

ZN0088– 95mm

ZN0098– 180mm

ZN0108– 300mm

6

ZN0089– 95mm

ZN0099– 180mm

ZN0109– 300mm

7

ZN0090– 95mm

ZN0100– 180mm

ZN0110– 300mm

8

ZN0091– 95mm

ZN0101– 180mm

ZN0111– 300mm

9

ZN0092– 95mm

ZN0102– 180mm

ZN0112– 300mm

LETTERS (CLICK IMAGES TO VIEW DIMENSIONS)

A

ZN0229– 95mm

ZN0255– 180mm

B

ZN0230– 95mm

ZN0230– 180mm

C

ZN0231– 95mm

ZN0257– 180mm

D

ZN0232– 95mm

ZN0258– 180mm

E

ZN0233– 95mm

ZN0259– 180mm

F

ZN0234– 95mm

ZN0260– 180mm

G

ZN0235– 95mm

ZN0261 – 180mm

H

ZN0236– 95mm

ZN0262– 180mm

I

ZN0237– 95mm

ZN0263– 180mm

J

ZN0238– 95mm

ZN0264– 180mm

K

ZN0239– 95mm

ZN0265– 180mm

L

ZN0240– 95mm

ZN0266– 180mm

M

ZN0241– 95mm

ZN0267– 180mm

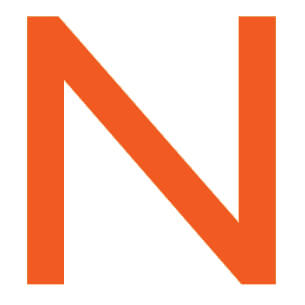

N

ZN0242– 95mm

ZN0268– 180mm

O

ZN0243– 95mm

ZN0269– 180mm

P

ZN0244– 95mm

ZN0270– 180mm

Q

ZN0245 – 95mm

ZN0271– 180mm

R

ZN0246– 95mm

ZN0272– 180mm

S

ZN0247– 95mm

ZN0273– 180mm

T

ZN0248– 95mm

ZN0274– 180mm

U

ZN0249– 95mm

ZN0275– 180mm

V

ZN0250– 95mm

ZN0276– 180mm

W

ZN0251– 95mm

ZN0277– 180mm

X

ZN0252– 95mm

ZN0278– 180mm

Y

ZN0253– 95mm

ZN0279– 180mm

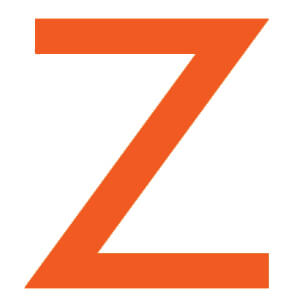

Z

ZN0254– 95mm

ZN0280– 180mm

COLOUR

H6903N

Pantone / RAL
Black 6 U / 9004

Average LRV
3.57

Black
red permaroute h6903

H6903R

Pantone / RAL
1795 U / 3020

Average LRV
16.47

Red

H6903O

Pantone / RAL
021 U / 2009

Average LRV
26.65

Orange

H6903Y

Pantone / RAL
114 U / 1018

Average LRV
43.34

Yellow

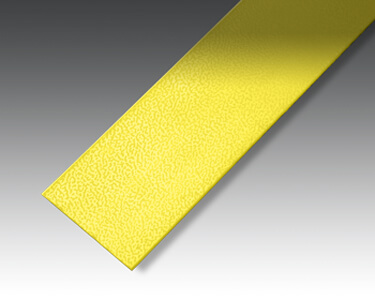

H6903F

Pantone / RAL
803 U / 1016

Average LRV
58.13

Fluorescent Yellow

H6903YNA

Pantone / RAL
137U / 1003

Average LRV
38.1

Special Yellow

H6903V

Pantone / RAL
7488 U / 6018

Average LRV
26.83

Green

H6903B

Pantone / RAL
2985 U / 5012

Average LRV
18.57

Blue

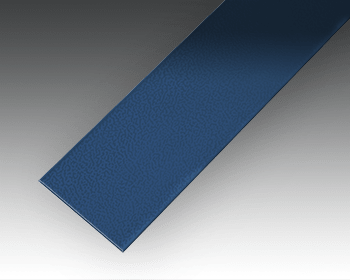

H6903J
