Reflective Tape

Product code: H6601

  • Mark out hazardous objects and areas
  • Various colours available
  • Roll widths from 15mm to 1240mm
  • Overview
  • Video
  • Colours

Reflective tape is a simple, self-adhesive, hi vis tape, suitable for marking out potentially hazardous or dangerous areas. It can be effectively used in any environment and takes literally minutes to apply.

Formerly just a constituent to some of our other materials, reflective marking tape is now available in self-adhesive rolls.

Application

Reflective safety tape is perfect for application in many areas:

Walkways

Reflective marking tape is great for marking out vital routes to be used either at all times, or routes to follow in an emergency. All colours are suitable to use for floor marking, however, you can refer to our colour reference guide for advice on which colour to use for your requirements.

Stairways

Stairways can be marked either as a specific or important way through for access or egress to or from a building or room. Stairways can also be marked to highlight them and remind people to take caution when ascending or descending them.

Ledges

Marked so workers or guests will be notified to use caution when working or near ledges.

Low hanging objects

Certain parts of structures can be at head height for some, therefore they are required to be marked to prevent injury. By adding hi vis tape, particularly reflective hazard tape to areas that could cause injury, you can reduce or prevent injuries completely.

Colours & Sizes

Available in plain colour and hazard in widths anywhere from 15mm to 1240mm and up to 10m in length, but as always, dependant on quantity, we can cater to your requirements. All the colours mentioned above are stocked in large quantities, so can be shipped immediately, and samples are available on request.

Left and Right-Hand Variants

We can offer these in all the different sizes that we offer our reflective hazard tapes.

H6601 Hazard Reflective Tape Left Hand + Right Hand Dimensions Heskins Ltd

Custom

For resellers we can offer a host of options, due to our production conversion machines we can offer shorter rolls of reflective tape, bespoke retail packs, specific core sizes and any other specifics you would like.

Reflective tape can also be printed on, so 610mm rolls can be produced to accommodate most machines in the industry sector. Samples are again available to show the quality of the print on our reflective safety tape.

(Please note: Enquire for MOQ’s and printing is not done in-house so please allow extended lead times for this.)

Reflective marking tape is coated with a permanent adhesive coat, which allows for a long term bond, and with it not being water-based, it will not break down under testing environmental conditions. A paper backing liner is applied to protect the PSA ( pressure sensitive adhesive ) prior to application.

Certification/Standards

Heskins is proud to offer reflective tapes such as H6601 that are RA1 approved, adhering to the high standards of reflectivity and visibility once classified as Class 2 under BS873. While the BS873 standard is now considered redundant, it is still widely recognised and referred to in the industry. Our RA1 approved tape meets rigorous requirements for reflectivity and durability, ensuring top-quality safety and visibility solutions for our customers.

To order or enquire further, you can contact us by phone, Live Chat or alternatively complete the Contact Us form above and we will get back to you as soon as possible.

How to Apply Reflective Tape

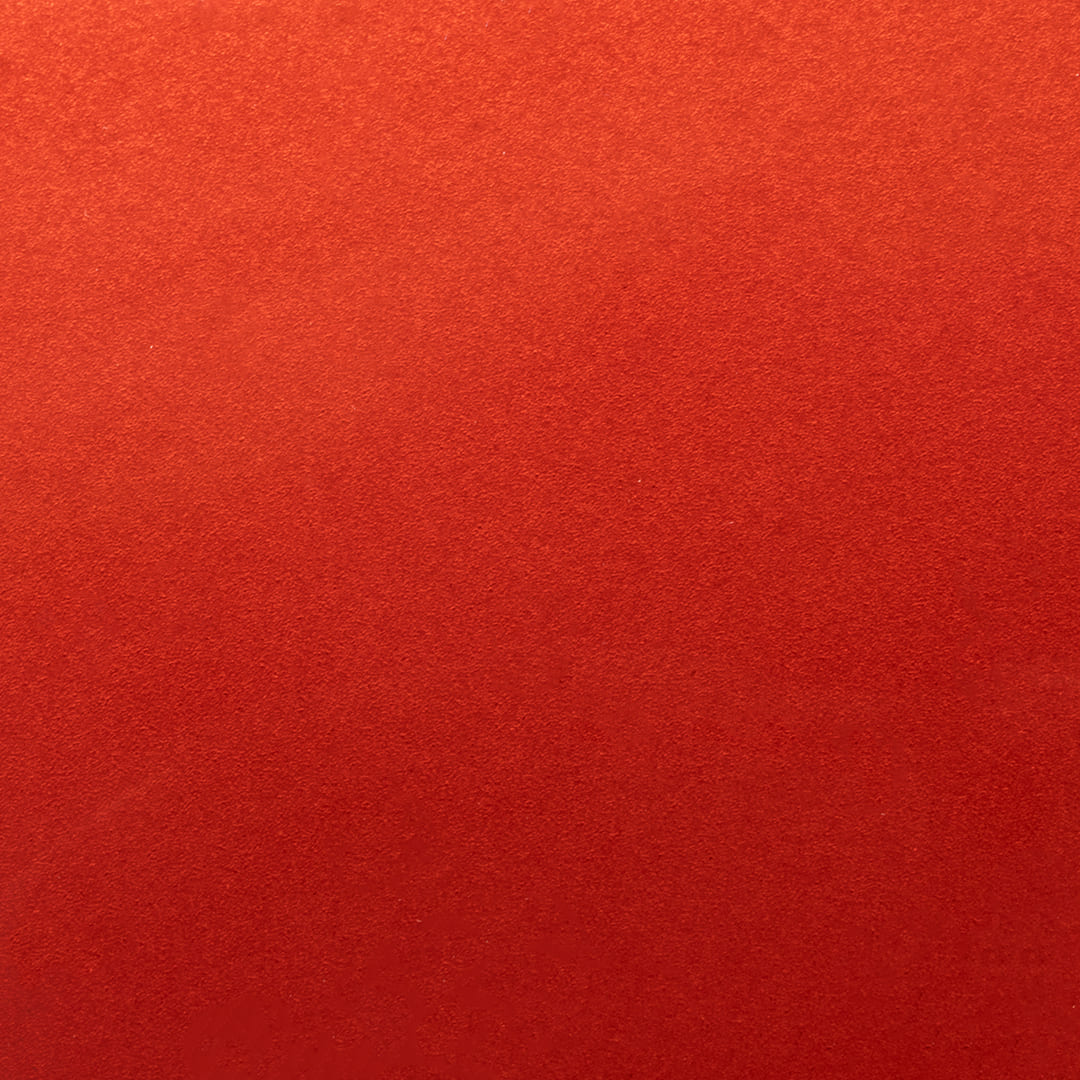

H6601R

Pantone /RAL
Warm Red U/3020
Average LRV
14

Red

H6601O

Pantone /RAL
1021U/2008
Average LRV
28

Orange

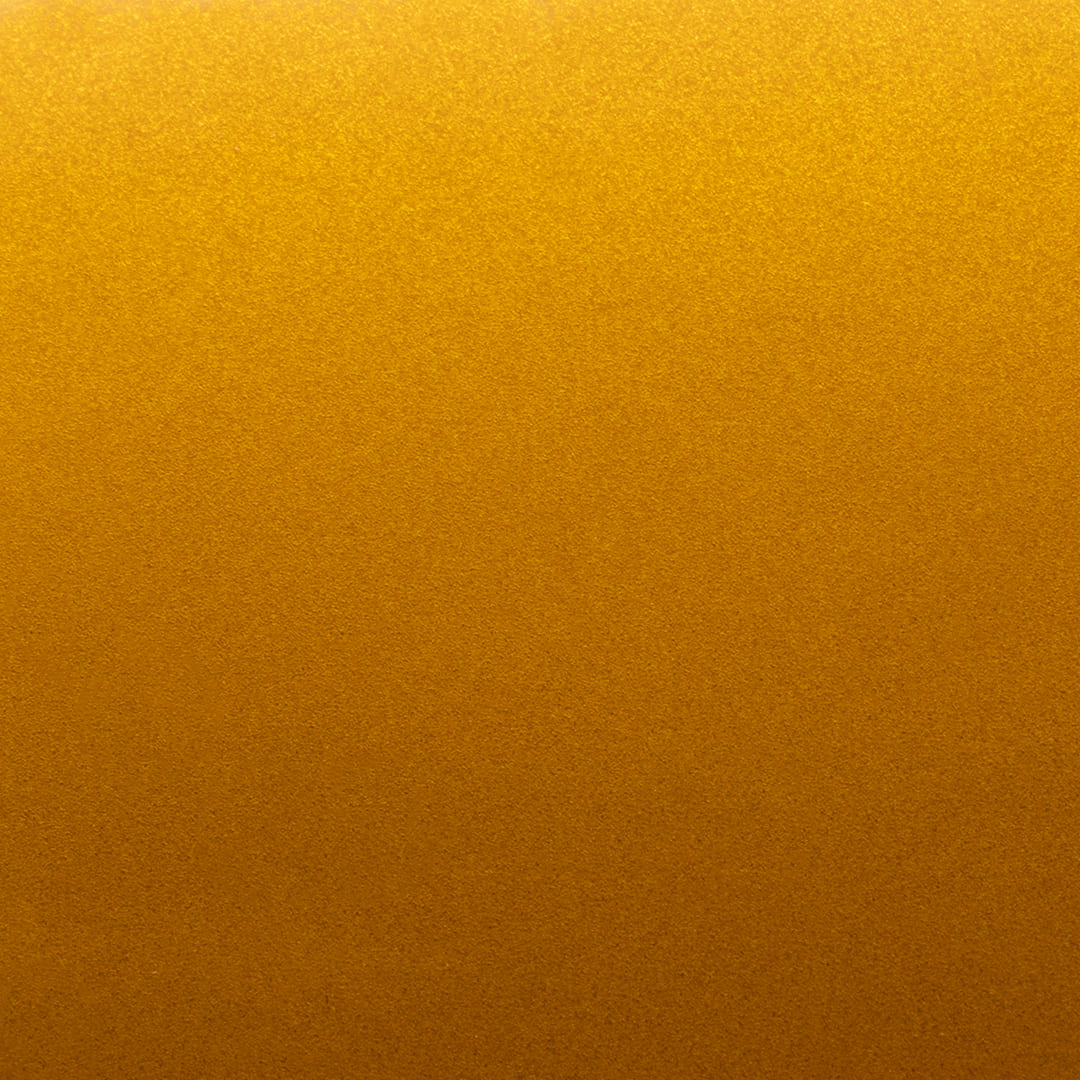

H6601Y

Pantone /RAL
114U/1023
Average LRV
65.25

Yellow

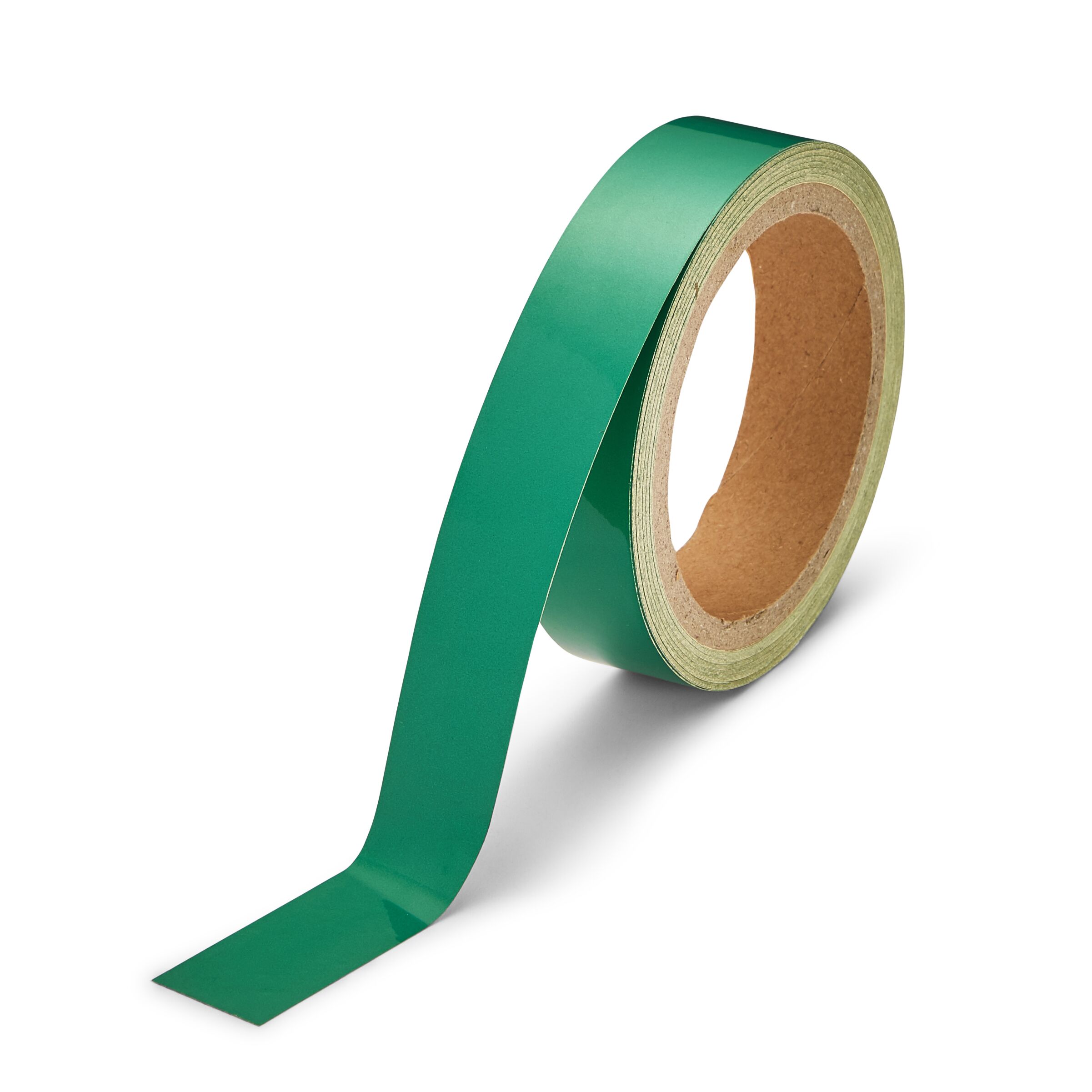

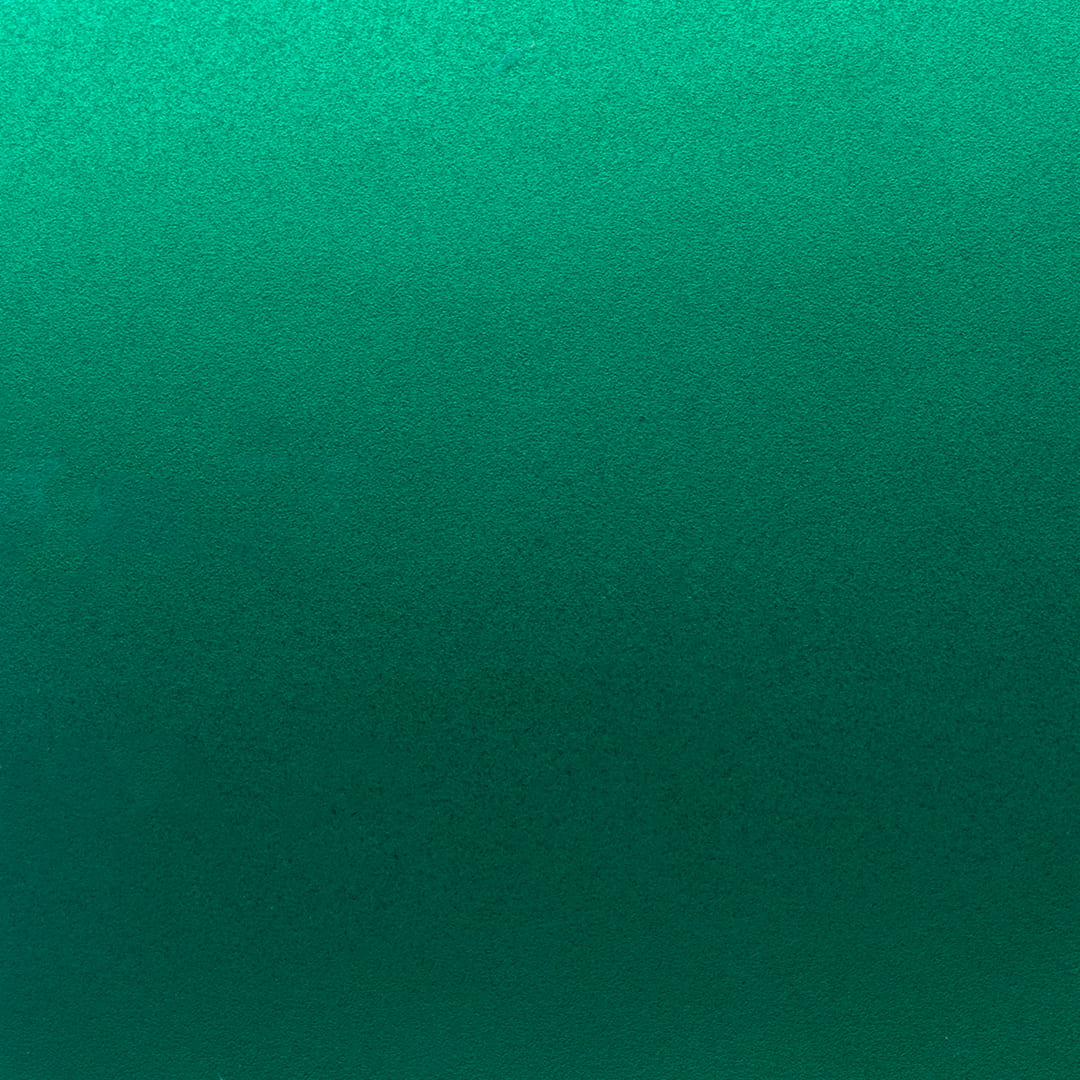

H6601V

Pantone /RAL
569U/6032
Average LRV
41

Green

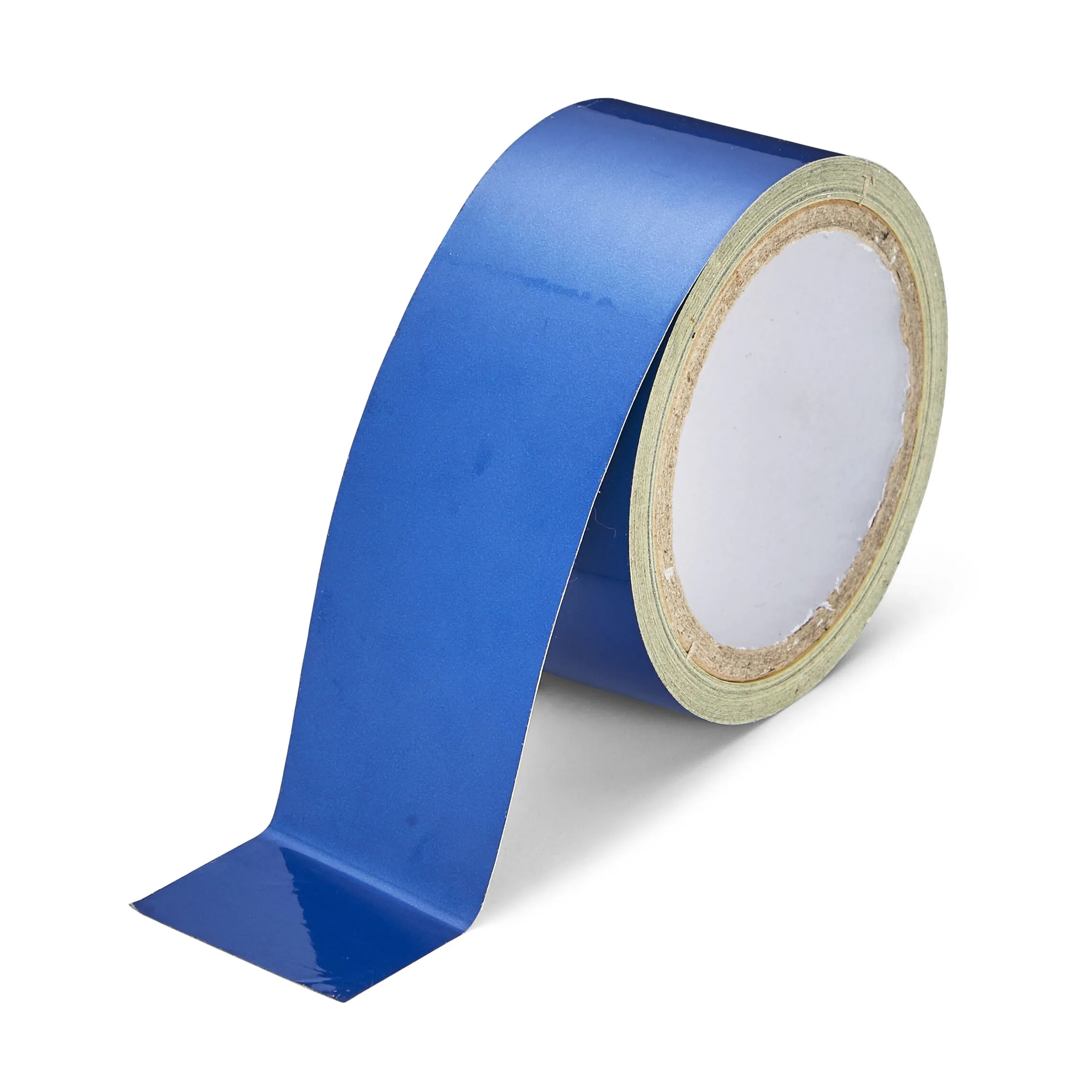

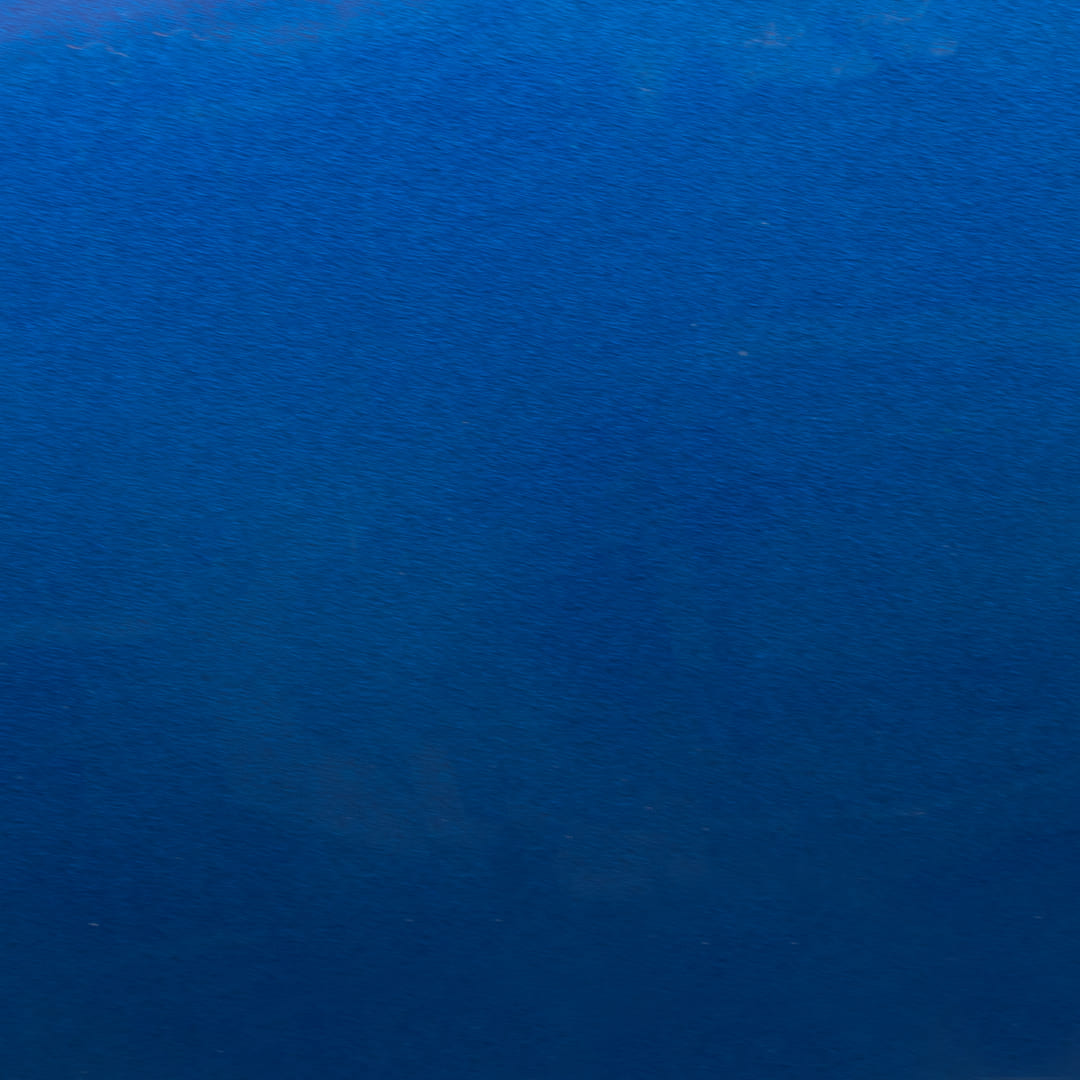

H6601B

Pantone /RAL
3005U/5017
Average LRV
7

Blue

H6601G

Pantone /RAL
484U/8004

Brown

H6601S

Pantone /RAL
421/9016
Average LRV
85

White

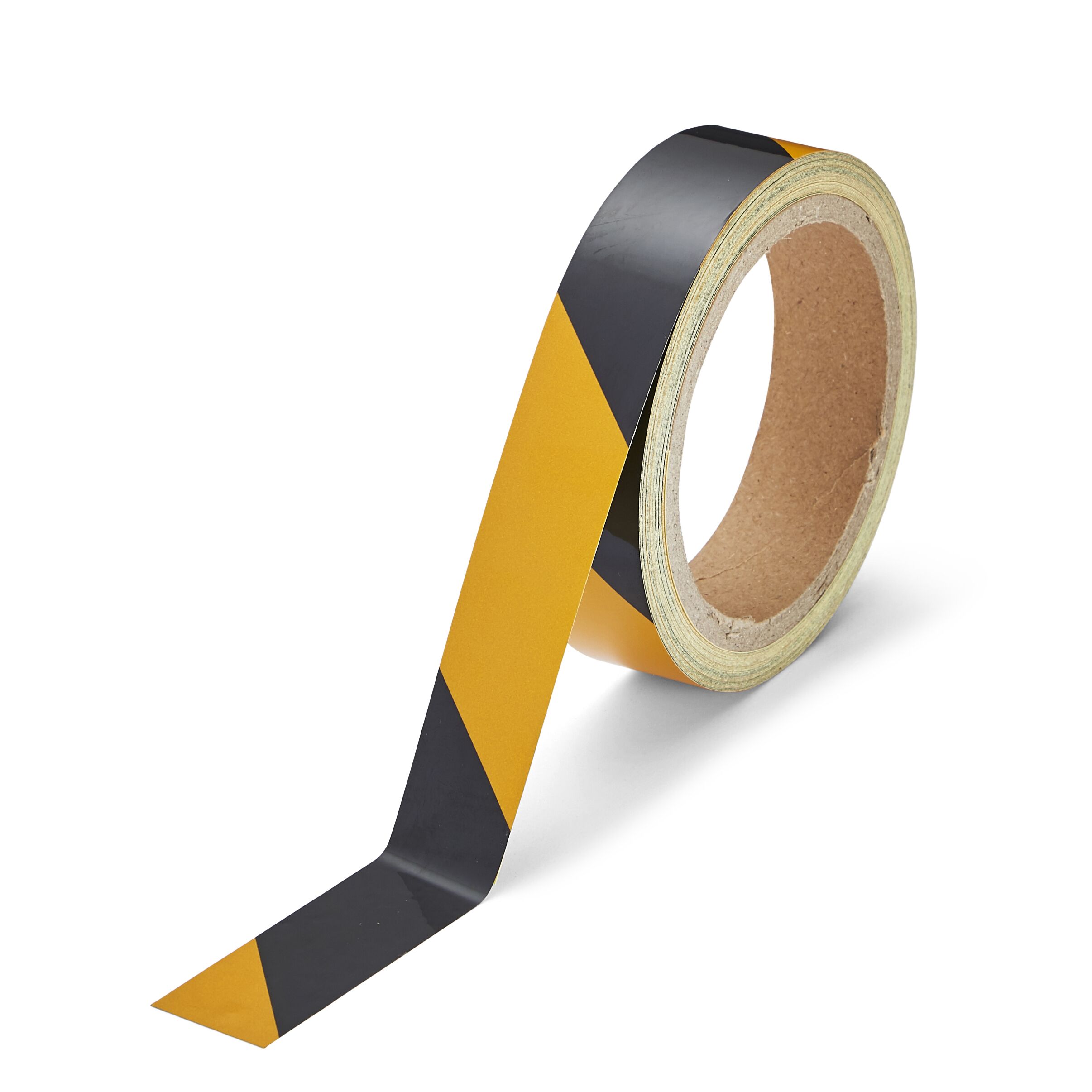

H6601D

Pantone /RAL
Black & 116U/9017 & 1006
Average LRV (Black)
0
Average LRV (Yellow)
62

Black/Yellow

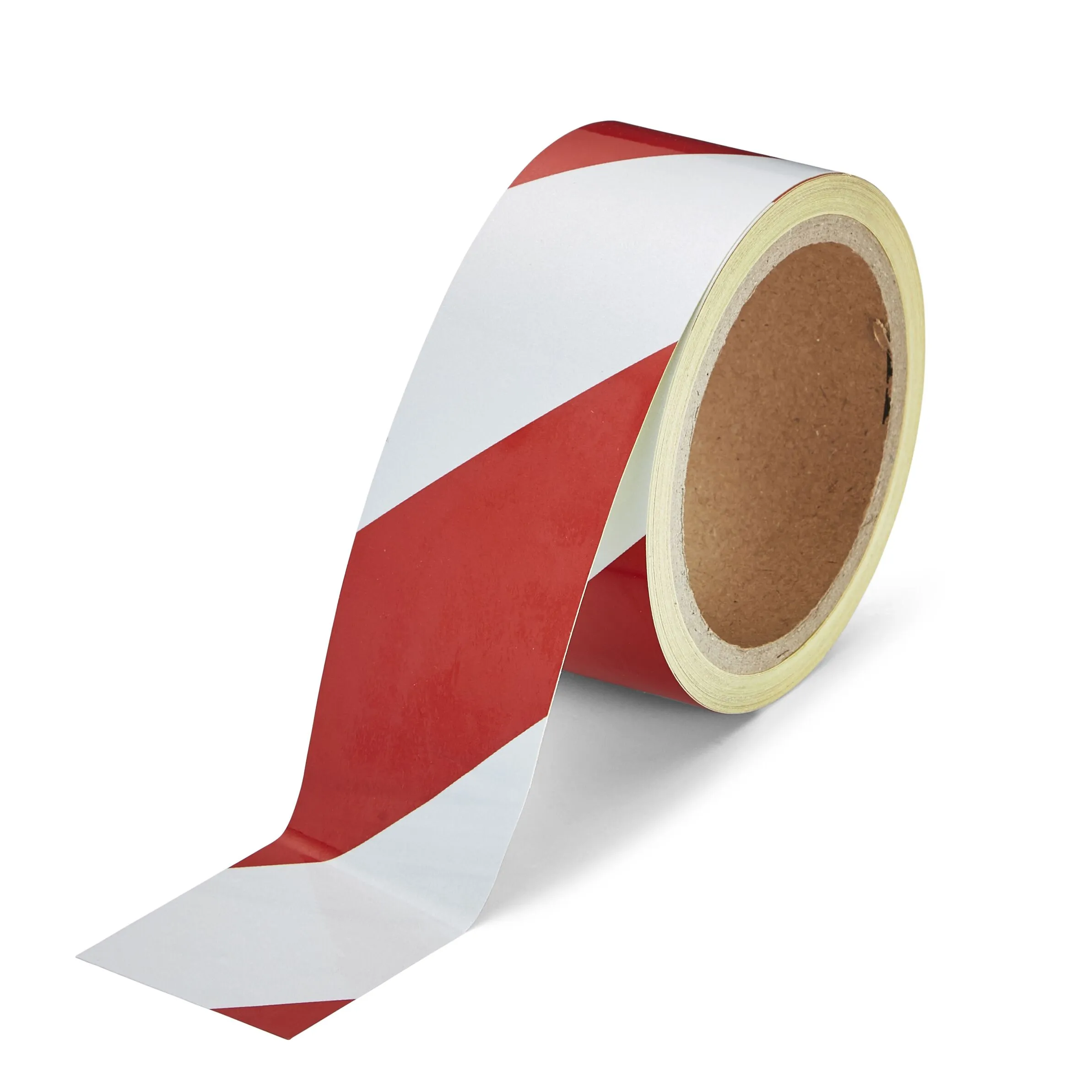

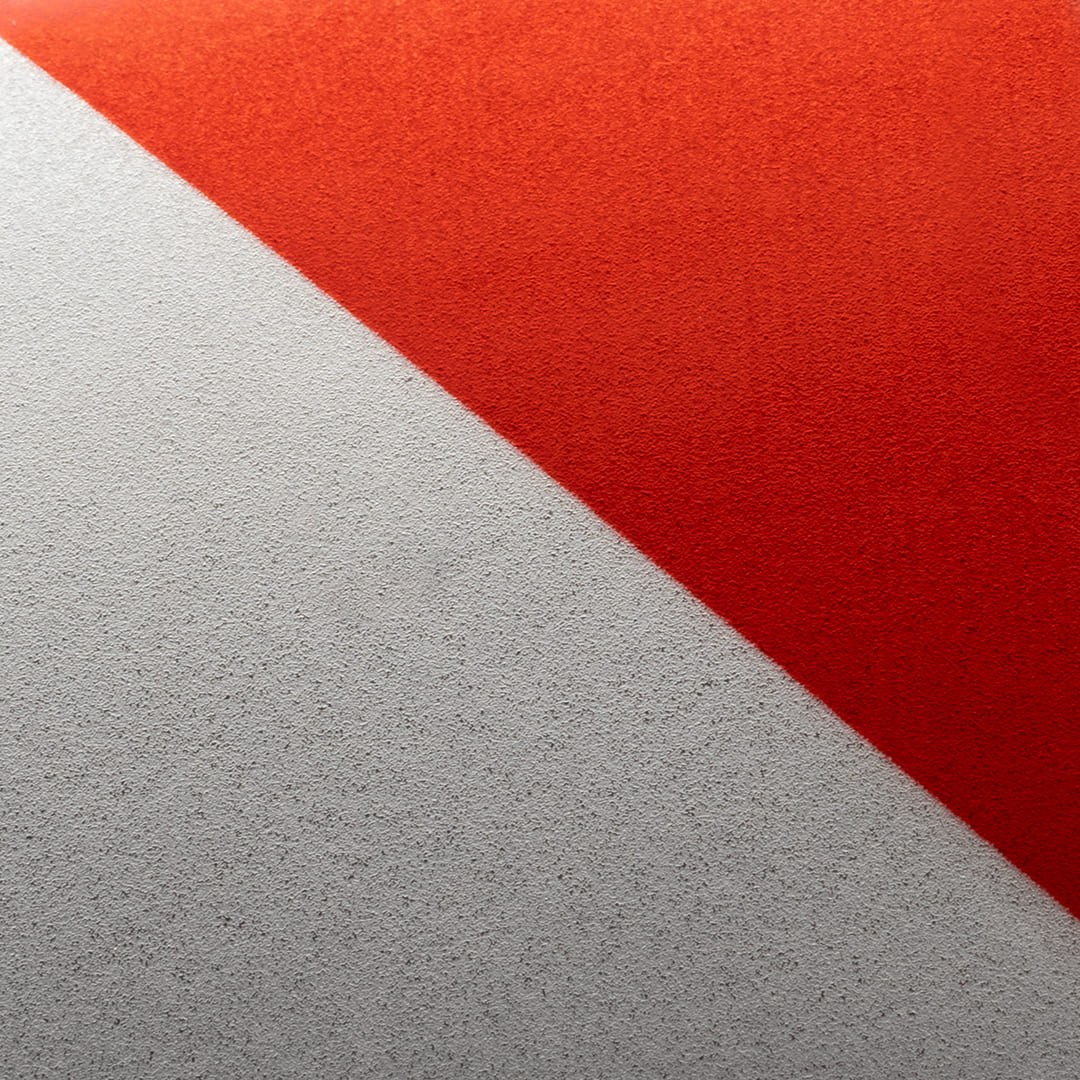

H6601A

Pantone /RAL
Warm Red U & 427U/3020 & 7035
Average LRV (Red)
13.5
Average LRV (White)
84

Red/White

Light Reflectance Values

Product code Colour Av. LRV Range
H6601Y Yellow 65.25 2
H6601R Red 14 4
H6601V Green 41 4
H6601B Blue 7 2
H6601O Orange 28 3
H6601W White 85 0
H6601D Yellow 62 2
H6601D Black 0 0
H6601A Red 13.50 1
H6601A White 84.00 0

Standards

Country Colour Requirement
International (US/Canada) Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White ASTM D4956 Type I
Europe Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White EN 12899/1 RA1
Australia Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White AS/NZS 1906.1 Class 100
New Zealand Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White AS/NZS 1906.1 Class 100
China Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White GB/T 18833 Type I
Mexico Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White N-CMT-5-03-001 Tipo A
Spain Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White UNE 135334
France Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White NF XP98520
UK Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White BSI 8408
Italy Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White UNI 11122
Japan Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White JIS Z9117
South Africa Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White SANS 1519-1
Brazil Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White ABNT NBR 14644
Argentina Red, Orange, Yellow, Green, Blue, Brown, White, Black/Yellow and Red/White IRAM 10 033
